Bay Area SCAN weekly update 5/10/23

This blog post describes data collected at 8 wastewater treatment plants in the Greater Bay Area of San Francisco, CA, including Sacramento, that are partners in the SCAN project which began in late 2020.

All samples picked up by the couriers as of 5/8/23 have been processed and their data are on the site: The data from the SCAN sites are also on Please email Amanda Bidwell at if you identify any bugs on the site. ‌

New publication announcements:

  • Arts et al. Longitudinal and Quantitative Fecal Shedding Dynamics of SARS-CoV-2, Pepper Mild Mottle Virus and CrAssphage. Accepted to mSystems. Link to preprint.
  • Lowry et al. Respiratory virus concentrations in human excretions that contribute to wastewater: A systematic review. Accepted to Journal of Water and Health. Link to preprint.
  • Boehm et al.  2023. Wastewater surveillance of human influenza, metapneumovirus, parainfluenza, respiratory syncytial virus (RSV), rhinovirus, and seasonal coronaviruses during the COVID-19 pandemic. Lancet Microbe 4(5), e340-e348. Link to paper.


SARS-CoV-2 and Variants

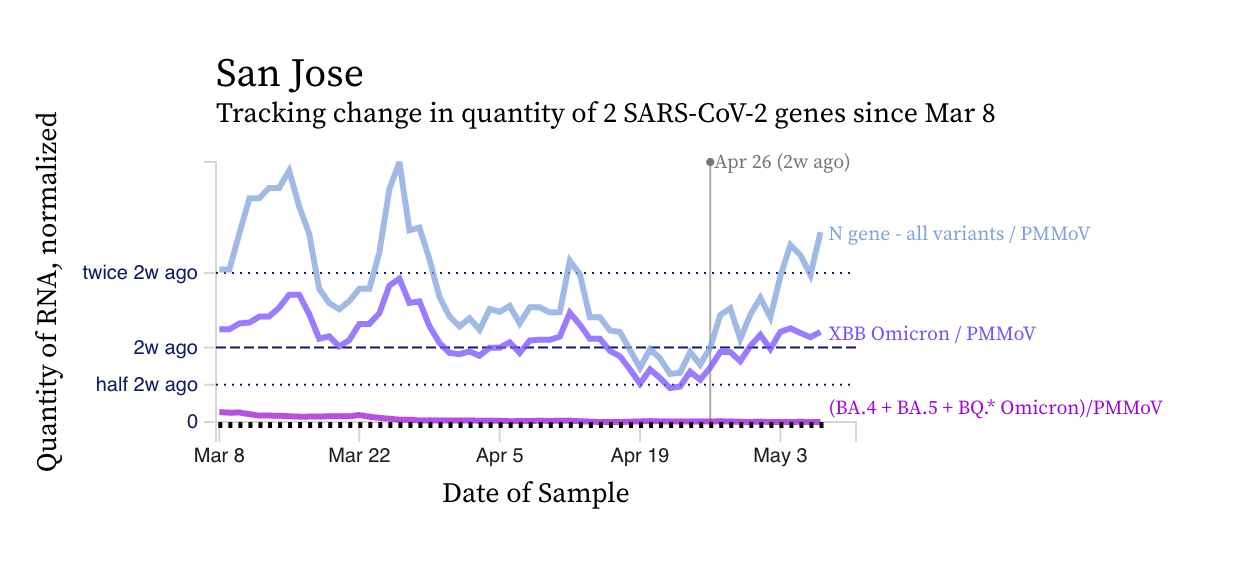

SARS-CoV-2 N gene concentrations at SCAN sites are similar to what they were two weeks ago at most sites, but are increasing at a subset. Concentrations are still approximately 100,000 copies/g, still well above our lower detection limit. Below is a chart showing data from the San Jose showing increases in N gene concentration (blue line) over the last two weeks.

We ran a 2-week look period trend analysis on the plants for the N gene target using methods outlined in this peer-reviewed paper by Chan et al. from our team (link to paper). SVCW, Sacramento have significant upward trends, while the rest of the plants have no trend.

Here are the data from all the SCAN plants together for the 2.5 years. You can access the graph here.  The population weighted average across the plants has started to turn up at the end of the time series.

‌The chart from San Jose (2 plots above) shows that the mutation marker for XBB* (shown in violet) is close to the blue line (showing the N gene, present in all variants), and the bright purple line (showing the mutation present in the BQ* and BA.5 sublineages) is basically at 0. This indicates that most of the individuals shedding SARS-CoV-2 RNA in the sewersheds are  infected with and shedding XBB* rather than another variant. We see the pattern across all the sewersheds in SCAN. The assay we use for XBB* detects XBB.1.16 as well as XBB.1.9 and FD.2 which are emerging XBB*. We are consistently detecting XBB.1.16 in wastewater from the three plants we sequence SARS-CoV-2 from (Oceanside, San Jose, and Sacramento) using sequencing approaches. We do not have good precision on the proportion of SARS-CoV-2 genomes that are XBB.1.16, but perhaps between 10-20% in some samples. The data suggest that the sublineage is present, in the wastewater as of the last week of April. The sequencing data is a couple weeks delayed from the present time.

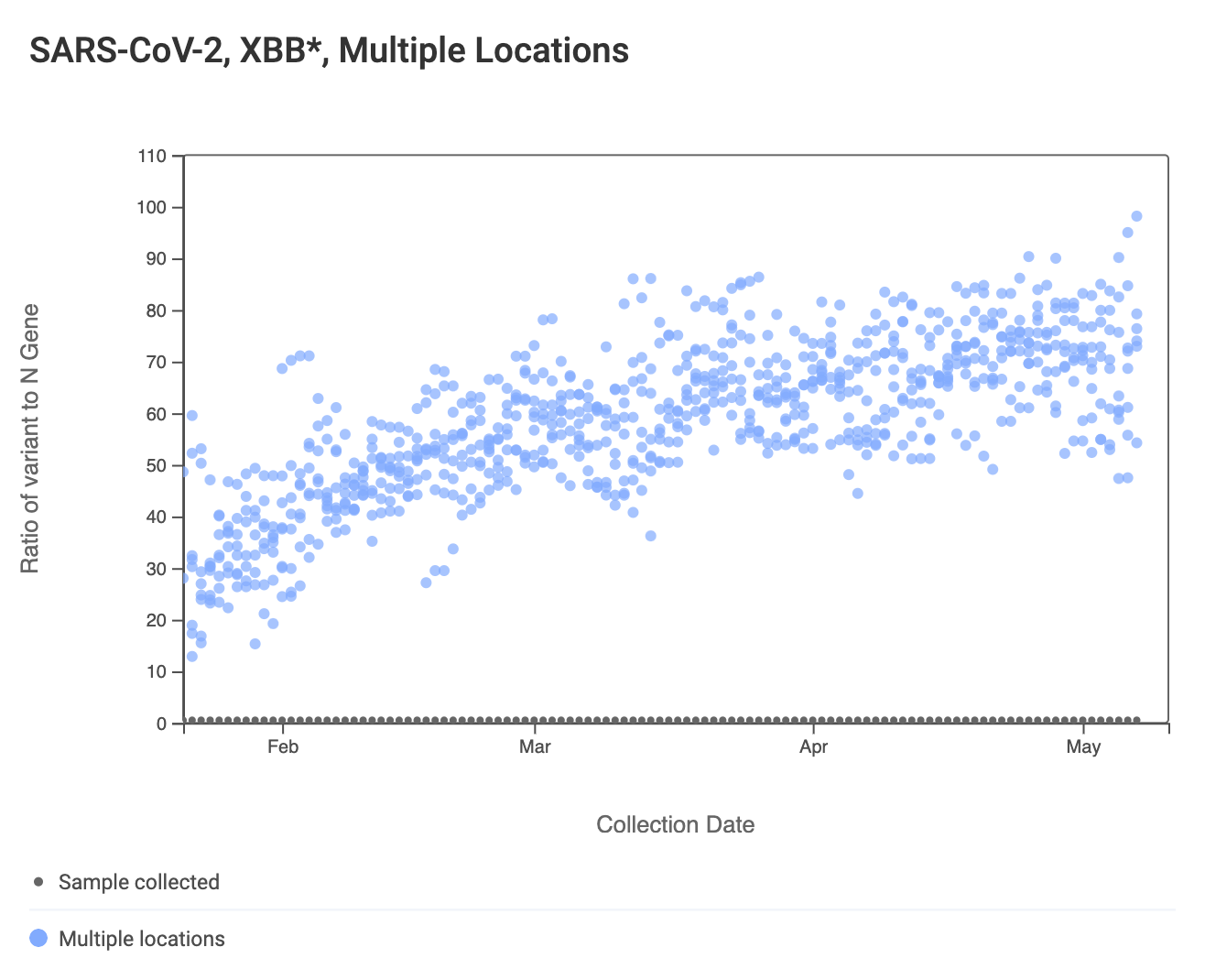

The ratio of the XBB* mutations/N across SCAN plants is shown in the chart below.  This chart comes from (link here to the chart). As the ratio reaches 100%, it suggests that all the SARS-CoV-2 genomes in wastewater have the XBB* mutations. These data indicate that the regional average ratio XBB* mutations/N is ~75%-80%. These are about the same as last week. These data suggest that the majority of infections across the SCAN communities are caused by XBB*.

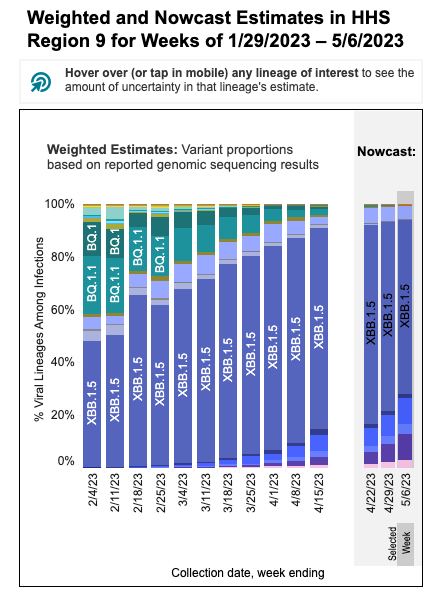

‌These data from wastewater solids on SARS-CoV-2 variants are consistent with the results from the CDC Nowcast for HHS Region 9 (which includes CA). The nowcast suggests nearly all infections in HHS Region 9 are caused by XBB*.  10% of infections are modeled to be caused by XBB.1.16 this week. A new XBB* (XBB.1.5.15, also called FD.2) is modeled to be causing 5% of infections this week.

The CDC nowcast model projections for XBB* are higher than what we see in the wastewater. The reason for this could be (1) the CDC model projections are not applicable to SCAN plants (they are for all of HSS Region 9), (2) there is another variant without the XBB* mutations we measure circulating, or (3) the XBB* circulating on our region do not have one or more of the mutations that we target with our assay (unlikely).

Other Respiratory Viruses


Influenza A (IAV) RNA concentrations are very low across the SCAN plants. Concentrations are generally non-detects in samples from recent weeks. The link to the chart below is here if you would like to interact with it.‌The population weighted average line across all the SCAN plants is shown in black.

The 2-week look period trend analysis on IAV RNA at these plants indicates a downward trend at Palo Alto, and no trend at the rest of the plants.

Influenza B (IBV) RNA is sporadically detected at low concentrations at the SCAN plants. Each plant is represented by a row (y-axis), and dates are shown along the x-axis. Blue indicates a non-detect, and darker orange/red is proportional to concentration with the highest values being darkest.  A white means no sample was collected. Here is the link to the heat map chart - the linked chart will update automatically as more data are added to the site.

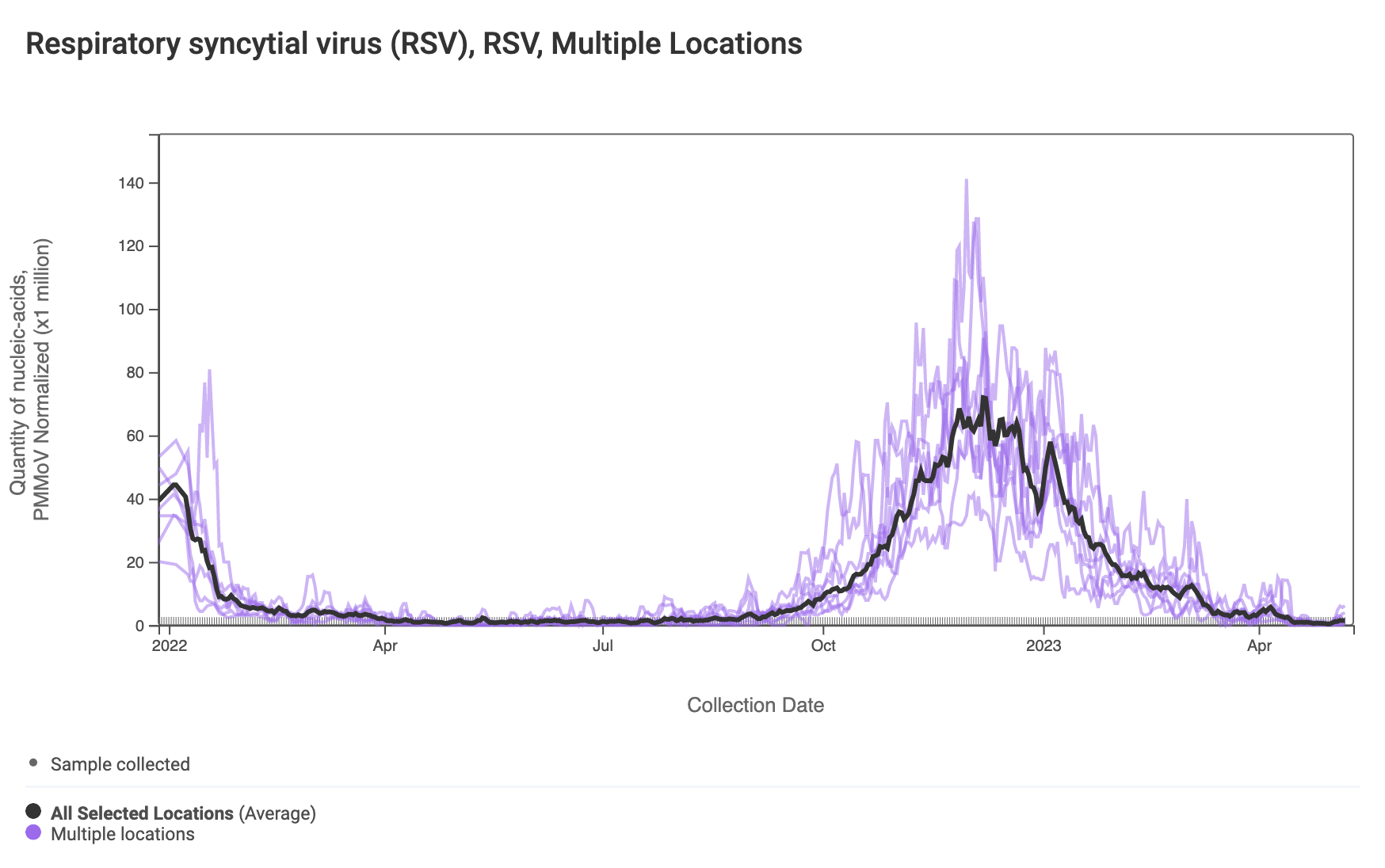

RSV RNA has been non-detectable in most samples in the past week. This plot shows data from all the SCAN sites together since last winter and can be access here. The black line is the population weighted average.

The 2-week look period trend analysis on RSV RNA at these plants indicates no trend at all the plants.

The heat map below shows the recent more frequent occurrence of non-detects for RSV over the last few weeks.

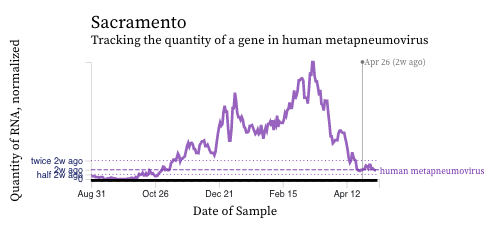

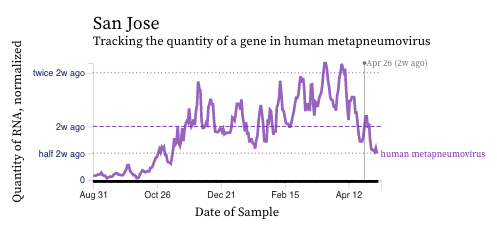

‌‌HMPV (human metapneumovirus) RNA concentrations are coming down across most of plants in SCAN. Below are charts showing data from all the SCAN plants together (link here to this chart if you want to interact with it), and just Sacramento and San Jose. At Sacramento and San Jose levels have come down quite a bit over the last week.

The 2-week look period trend analysis on HMPV RNA at these plants indicates a significant downward trend at San Jose and no trend at the remaining plants.


Assay detects human norovirus GII

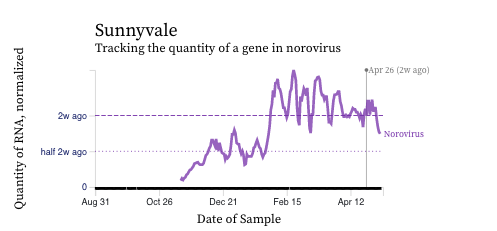

Norovirus GII RNA concentrations have taken a down turn at most, but not all plants. A chart of all the SCAN plants together is shown below. The population weighted average line is shown in black, and that line shows a slow decrease over the last couple weeks.  You can interact with the chart of all the plants at this link. The chart from Sunnyvale shows that norovirus RNA concentrations have been fairly constant over the last two weeks, and other individual plants have similar patterns.

The 2-week look period trend analysis on HuNoV GII RNA these plants indicates a significant downward trend at Southeast, and no trend at the other plants.

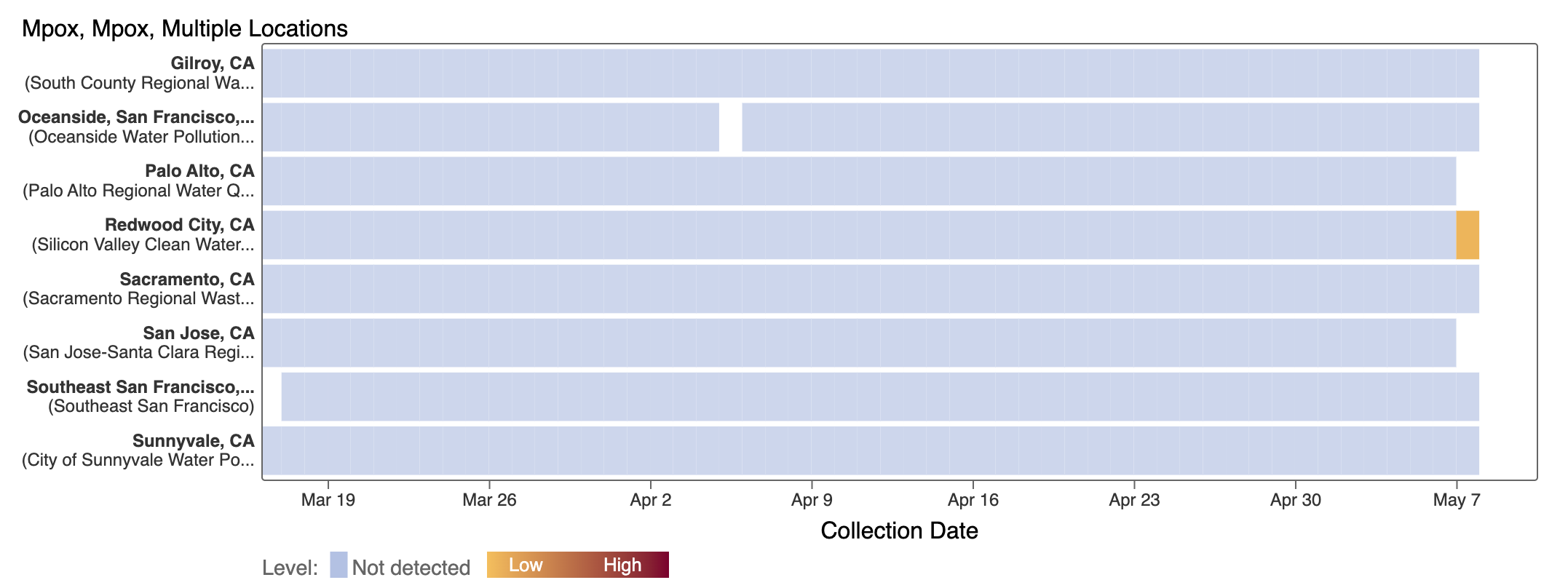

We've observed non-detects in the last 6 weeks for MPXV DNA at the SCAN plants, with the exception of a recent sample (show in orange below). These heat maps show all the SCAN sites as a row, and each date as a column. The color blue means the sample was non-detect for MPXV DNA and the colors get darker with higher concentrations. The top chart shows just recent data, and the bottom one all the data we have collected, almost a year's worth of data.  You can access these plots here.
