SCAN Weekly Update - 11/8/23

This blog post describes data collected at 8 wastewater treatment plants in the Greater Bay Area of San Francisco, CA, including Sacramento, that are partners in the SCAN project which began in late 2020. The SCAN plants are a subset of the WastewaterSCAN plants.

‌All samples picked up by the couriers as of 11/6/23 have been processed and their data are on the site: data.wastewaterscan.org. Please email Ali at aboehm@stanford.edu if you identify any bugs on the site. ‌

We have a new publication on enterovirus D68 monitoring in wastewater that uses data from Oceanside and San Jose plants from SCAN:

• Alexandria B. Boehm, Debra A. Wadford, Bridgette Hughes, Dorothea Duong, Alice Chen, Tasha Padilla, Chelsea Wright, Lisa Moua, Teal Bullick, Maria Salas, Christina Morales, Bradley J. White, Carol A. Glaser, Duc J. Vugia, Alexander T. Yu, Marlene K, Wolfe. Trends of enterovirus D68 concentrations in wastewater in two California communities parallel trends of statewide confirmed cases, February 2021-April 2023. Emerging Infectious Disease, 29(11). Link.

For more information about the Wastewater Categorization system (i.e., how LOW, MEDIUM, or HIGH categories are determined for each pathogen), please see "How are wastewater categories determined?" in the About page for wastewaterSCAN.

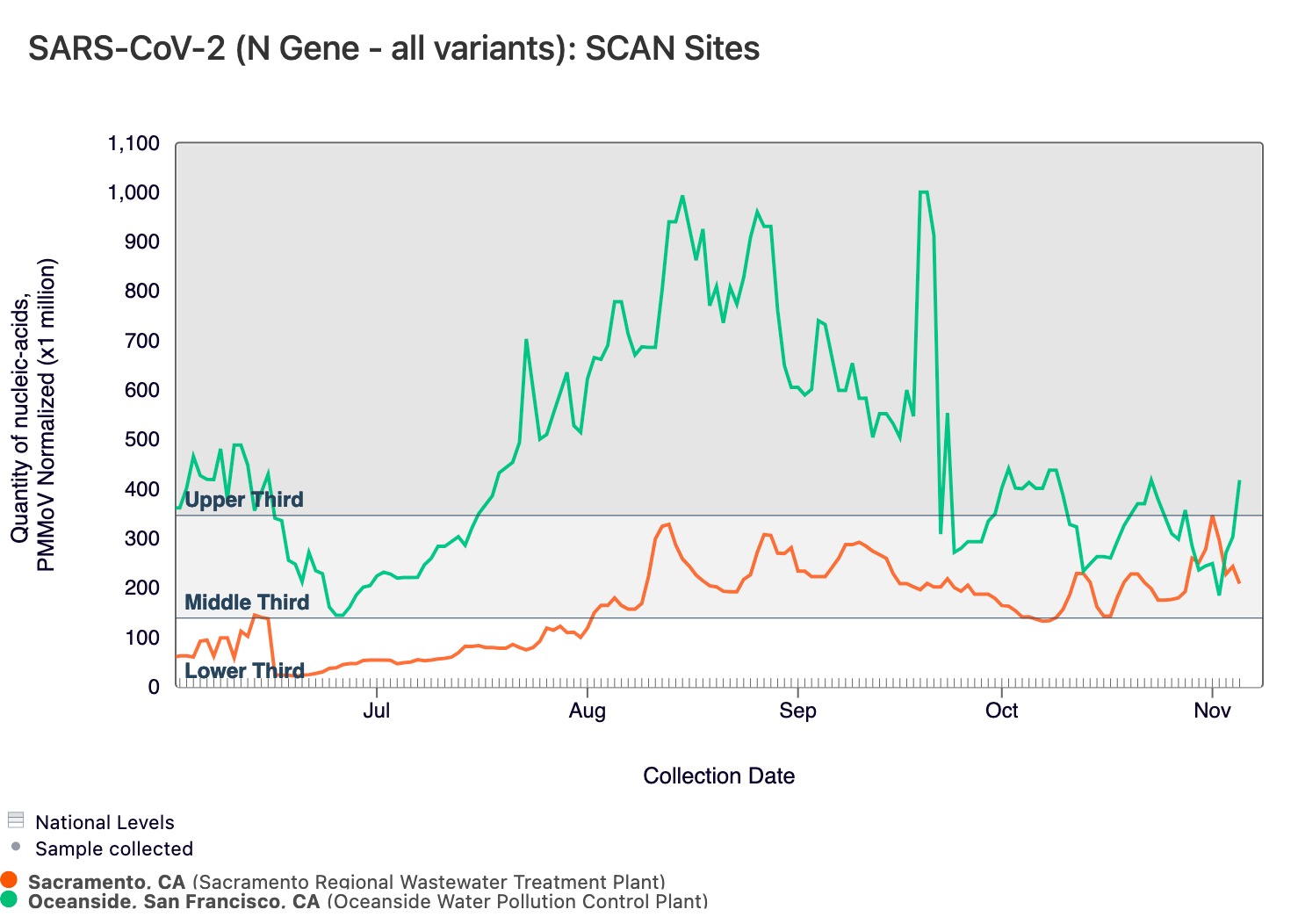

SARS-CoV-2 N gene concentrations are between 10,000 and ~100,000 copies/g. Below is a chart showing the National Levels benchmarks superimposed on the SARS-CoV-2 data from Oceanside SF and Sacramento since the beginning of June.

Below are the current SARS-CoV-2 wastewater categories for the SCAN sites (recall the category is determined by both the trend and the level):

Gilroy, Palo Alto, and Sunnyvale are in the LOW Wastewater CategorySVCW, San Jose, and Southeast SF are in the MEDIUM Wastewater Category Oceanside SF and Sacramento are in the HIGH Wastewater Category

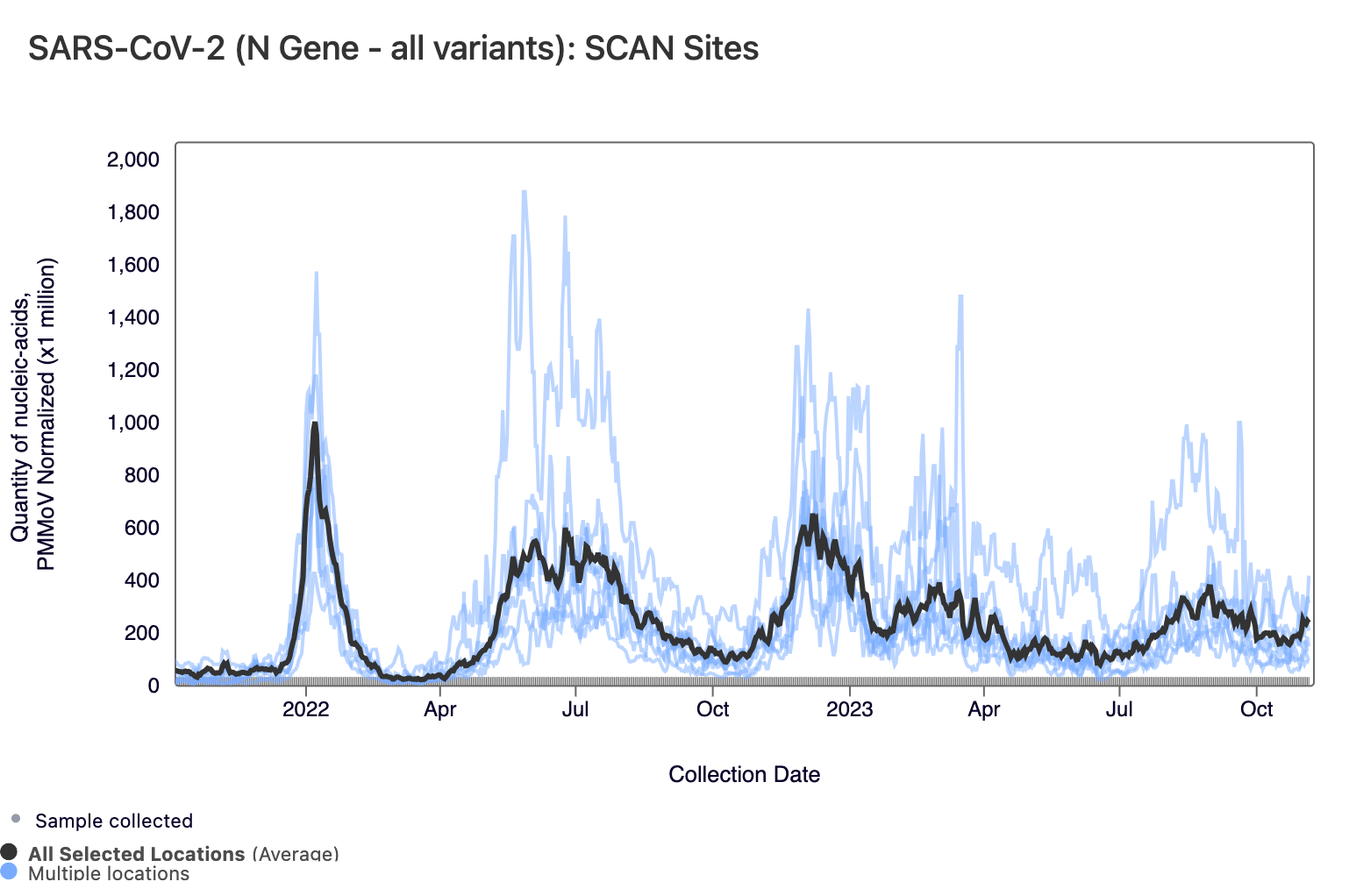

Below are all the data from all the SCAN plants for the last two years. You can access the graph here. The population weighted average across the SCAN plants is shown in black.

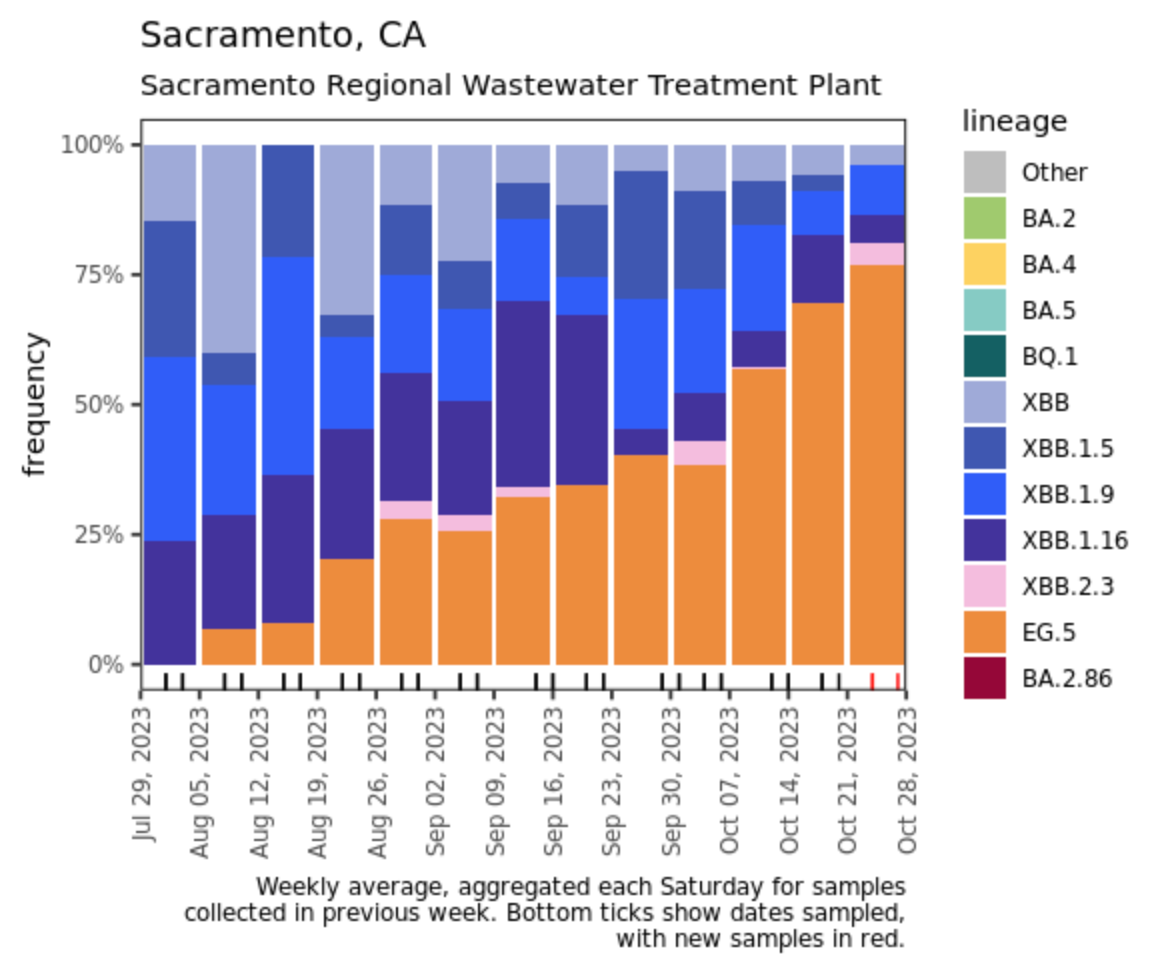

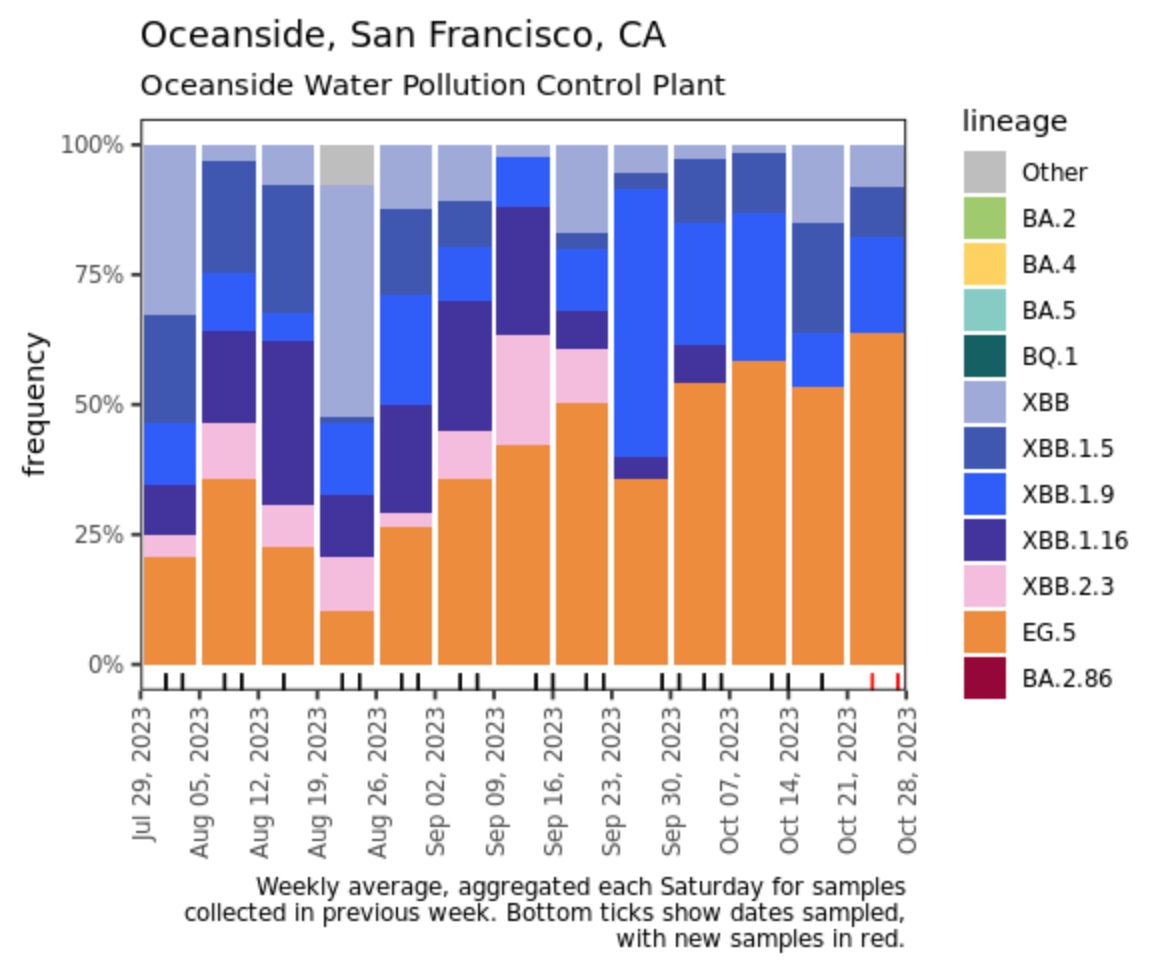

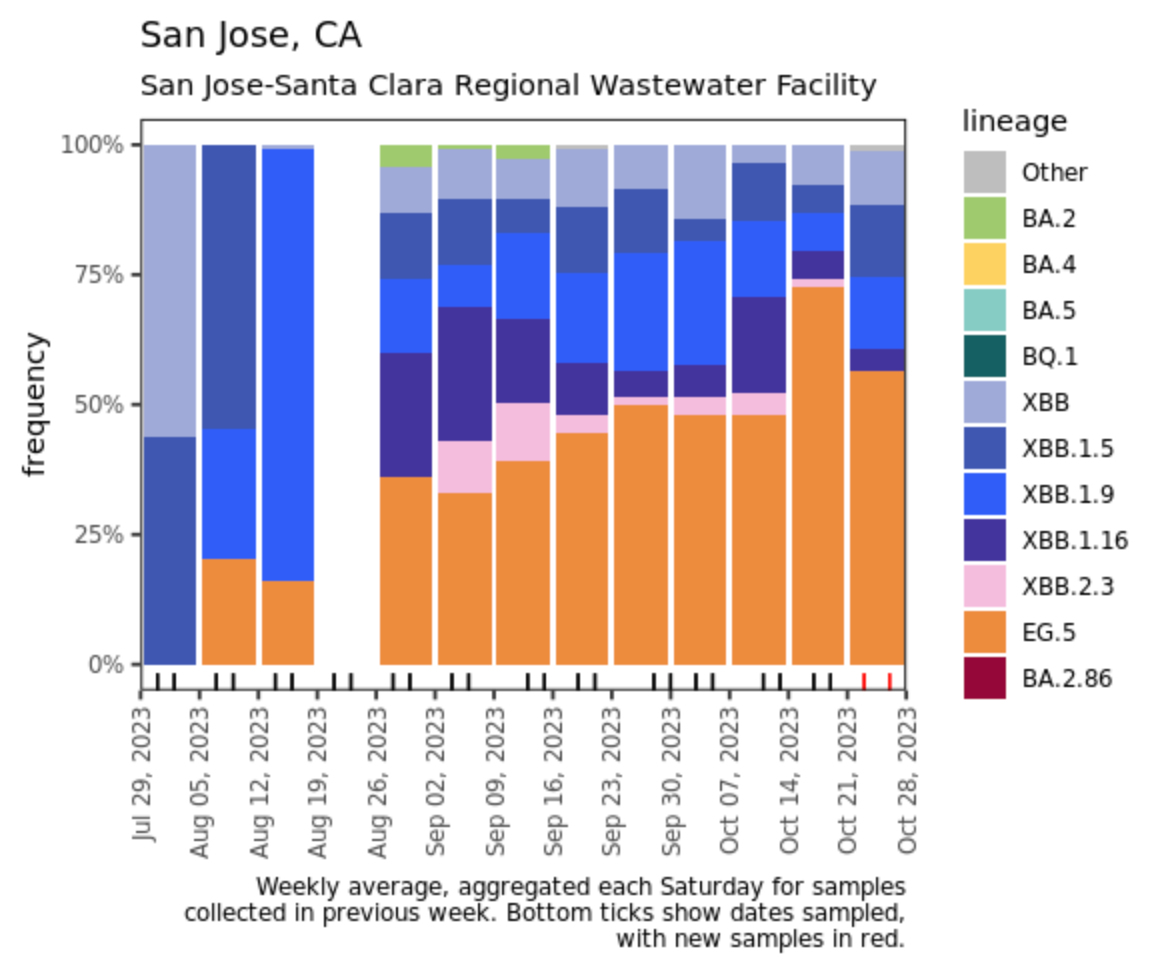

Below are plots from Oceanside SF, Sacramento, and San Jose showing the relative proportions of different variants inferred from sequencing the entire genome of SARS-CoV-2. Samples with low coverage are not being displayed in the plots (this explains the empty column for San Jose). In the most recent samples, you can see that Oceanside SF and Sacramento were approaching 75% of the sublineage EG.5 (in orange) while San Jose was >50% of the sublineage EG.5. In the last sequencing run, we did not detect BA.2.86 in wastewater from any SCAN sites. Note that the sequencing data are always from samples taken between 1- 2 weeks ago.

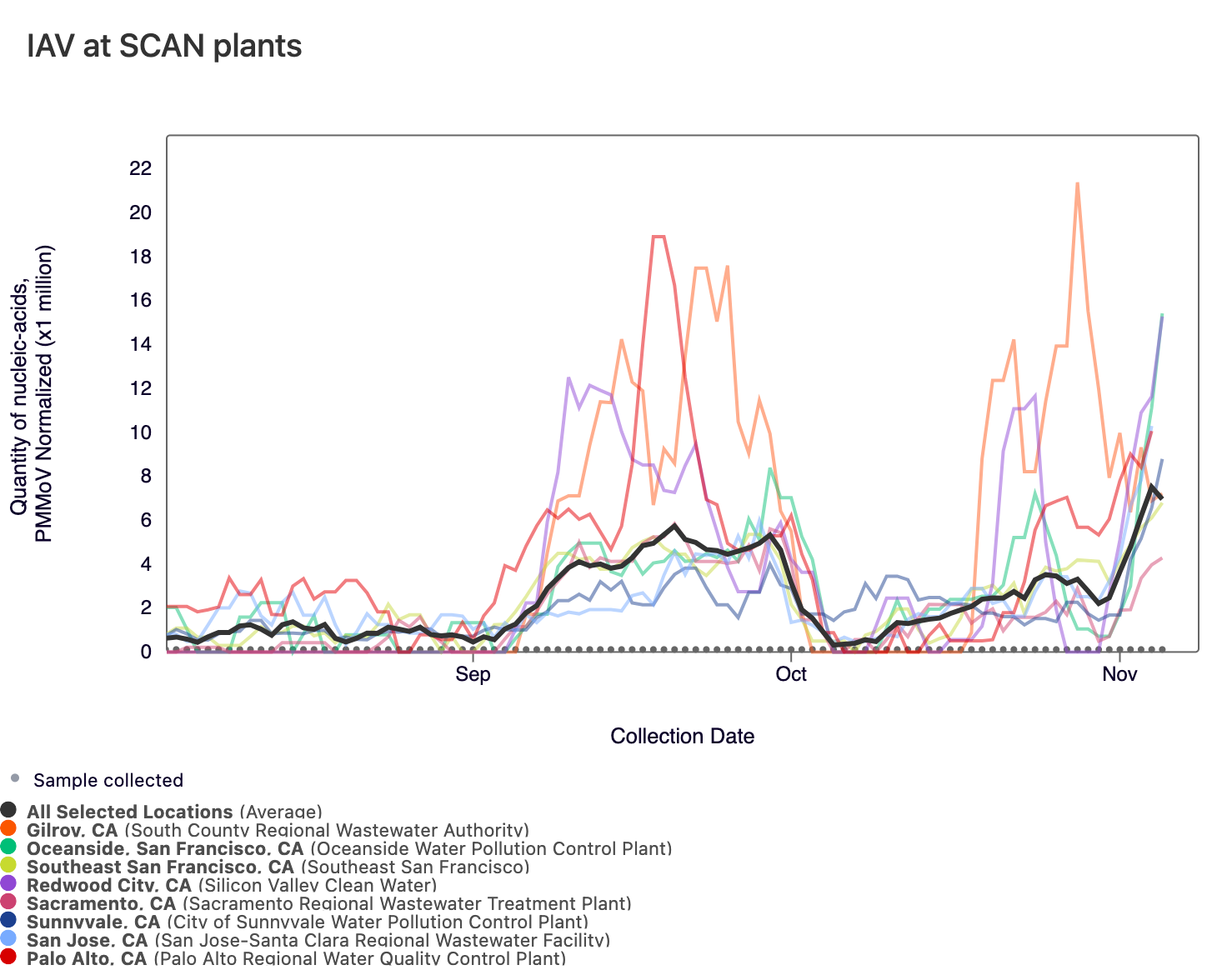

Influenza A (IAV) RNA concentrations are increasing across all SCAN sites, as can be seen below, but so far only two sites have met the benchmark for onset (Sacramento and Palo Alto). In the chart below, the population weighted average line across all the SCAN plants is shown in black for all SCAN plants since August.

Currently all SCAN sites are in the 'LOW' category for IAV

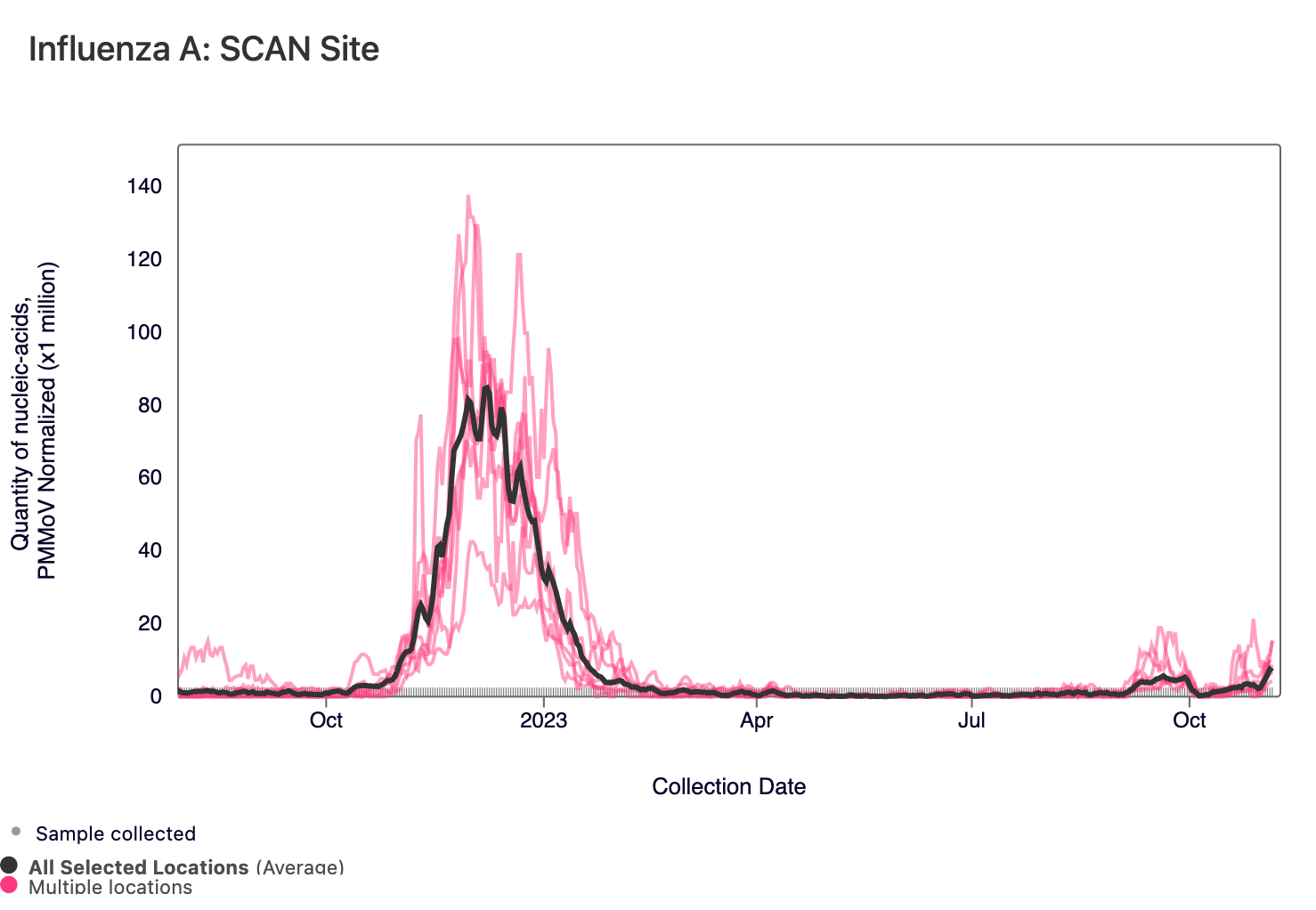

In the chart below, the population weighted average line across all the SCAN plants is shown in black for the full time series. The link to the chart below is here if you would like to interact with it.‌

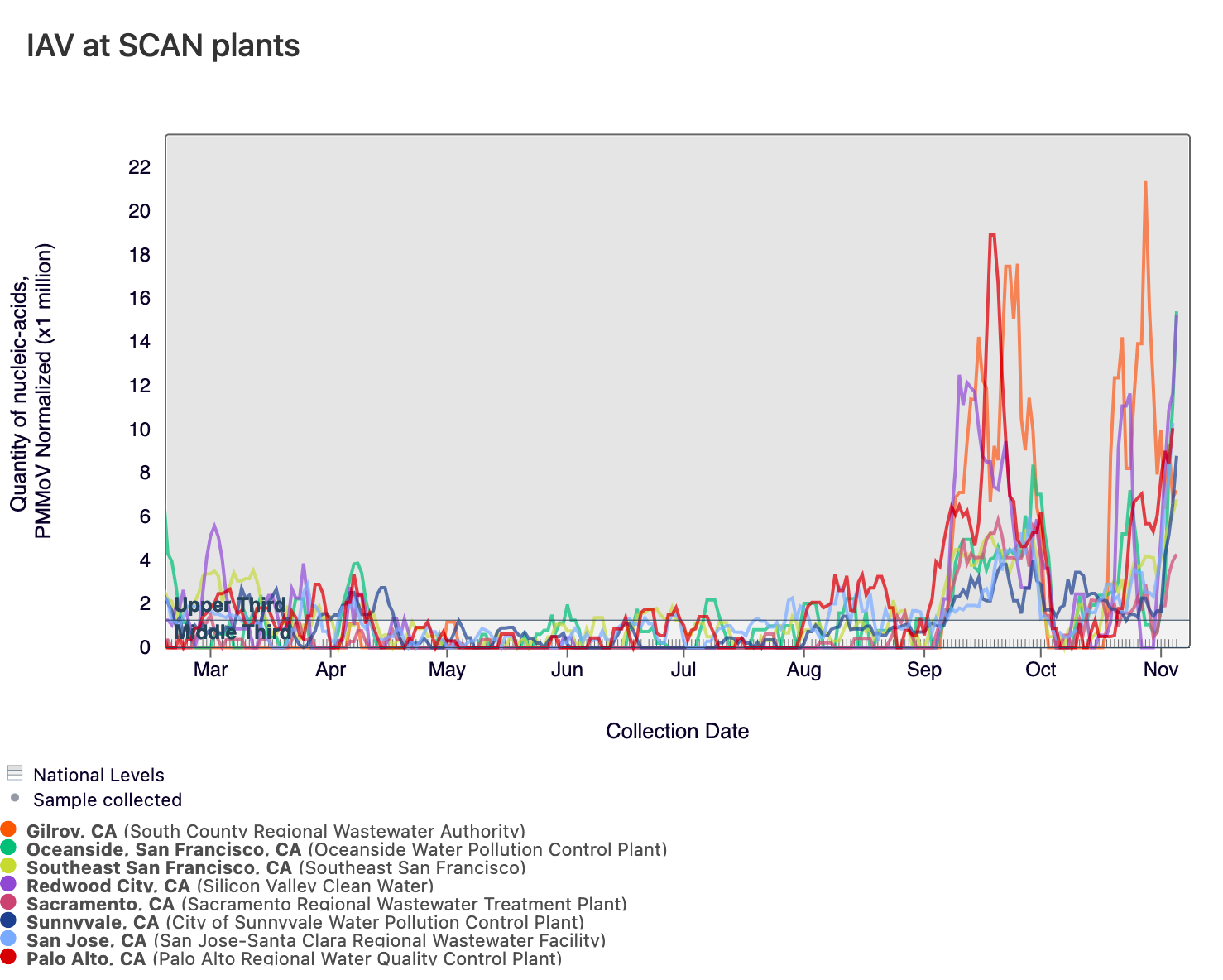

Below is a chart showing the National Levels benchmarks superimposed on the IAV data from the SCAN sites (you can access this chart here). ‌Currently, all SCAN sites have IAV concentrations in the upper third level.

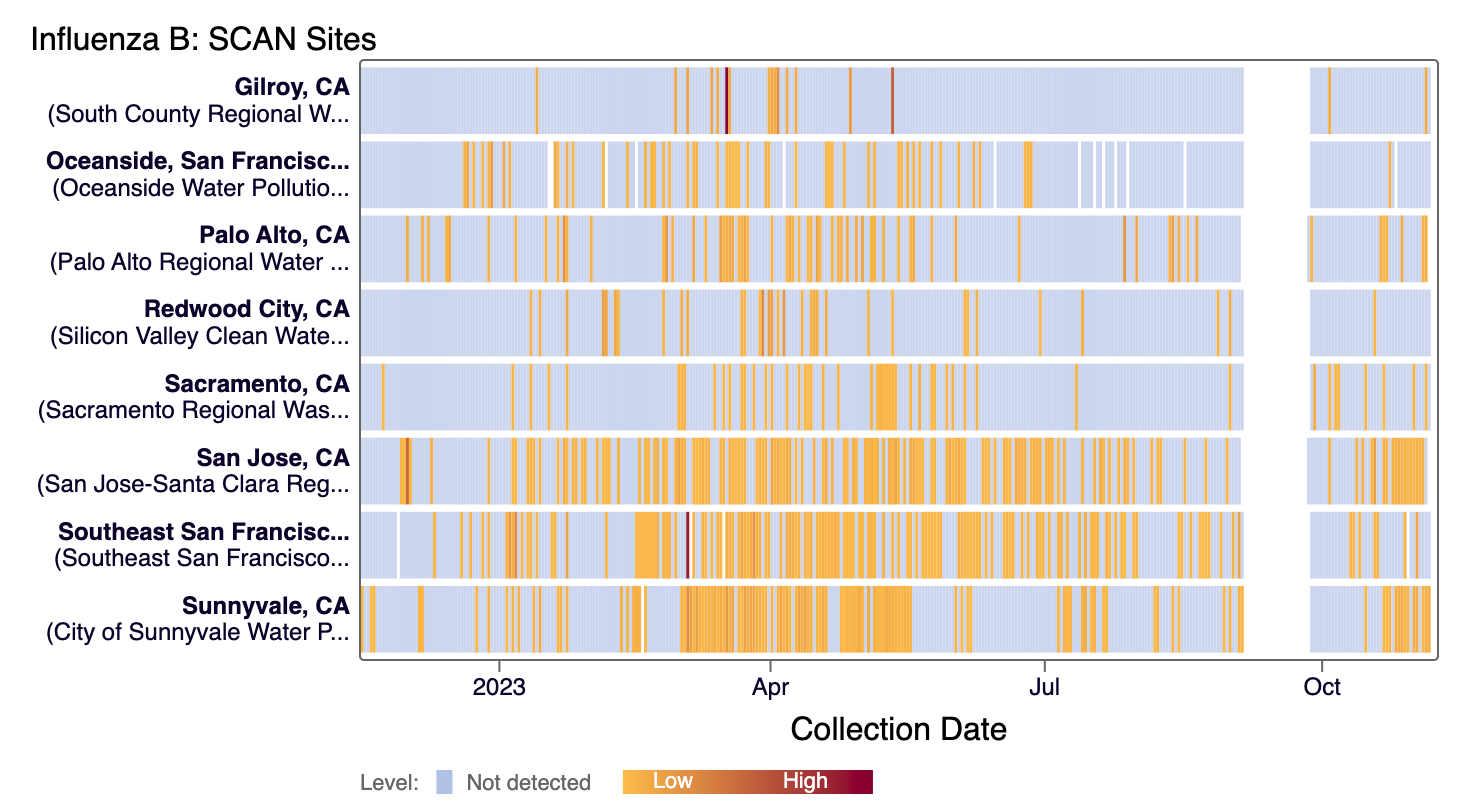

Influenza B (IBV) RNA has been sporadically detected at most SCAN sites in the last 21 days. However, IBV has been detected in the majority of San Jose and Sunnyvale samples in the last 21 days. The heat map below shows all the SCAN sites as a row and each date as a column. The color blue means the sample was non-detect for IBV RNA and the colors get darker with higher concentrations. White indicates no sample was collected. We briefly stopped monitoring for IBV, which explains gap in data across sites in September. Here is the link to the heat map chart - the linked chart will update automatically as more data are added to the site.

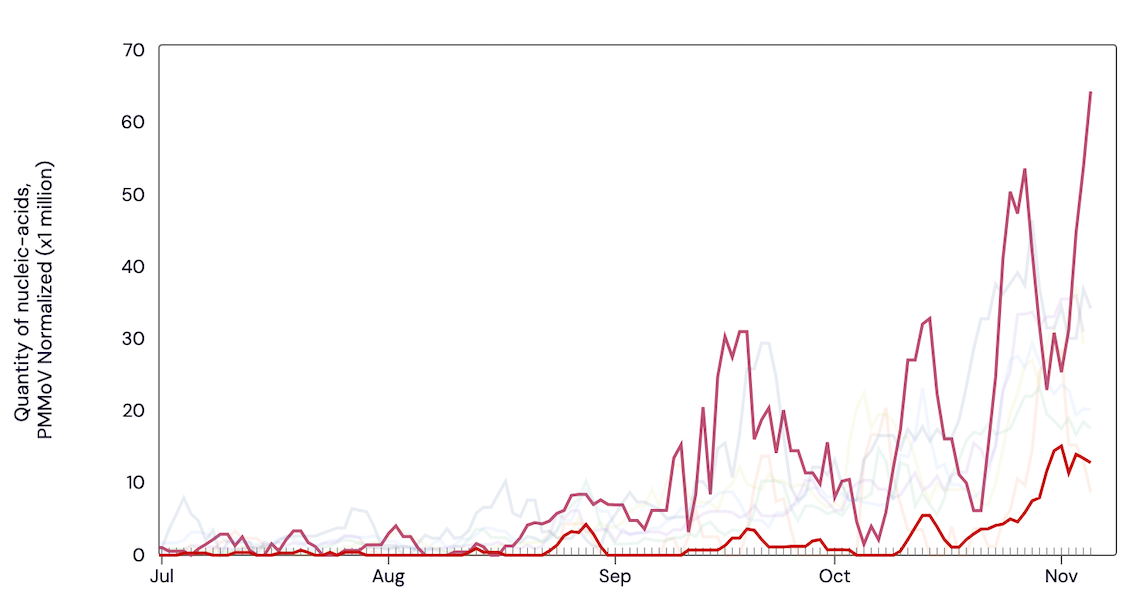

RSV RNA concentrations have increased for most SCAN sites since the beginning of September. In the chart below, the RSV RNA concentrations at Sacramento (red, bottom) are shown compared to those at SVCW (pink, top) since July. Seven sites have met the benchmark for onset including SVCW and Sacramento, which had not met the benchmark at this time last week.

Below are the current RSV wastewater categories for the SCAN sites:

Gilroy is in the LOW Wastewater Category (not in onset)SVCW, Oceanside SF, Palo Alto, Sunnyvale, San Jose, Sacramento, and Southeast SF are in the HIGH Wastewater Category (in onset)

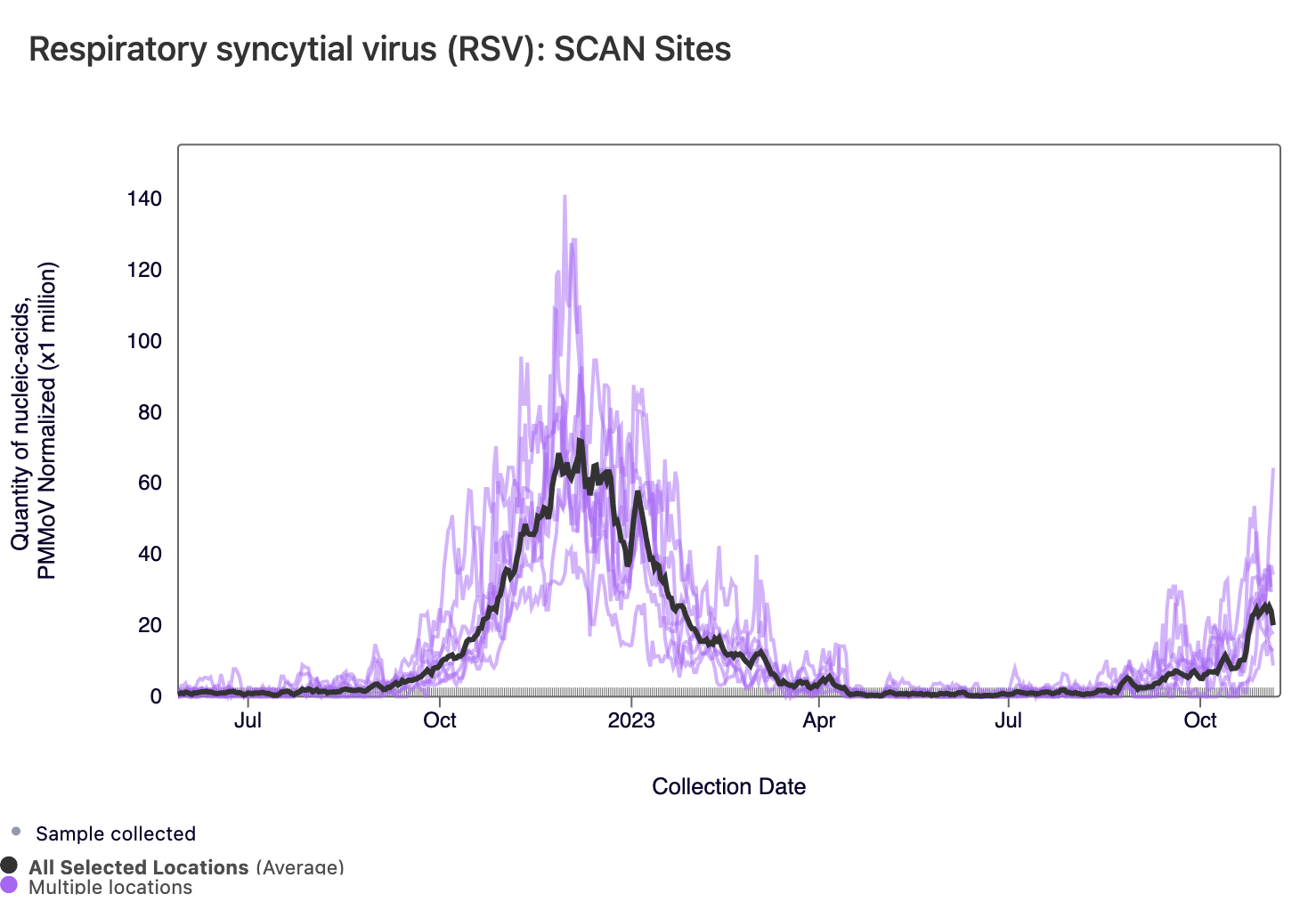

In the chart below, the population weighted average line across all the SCAN plants is shown in black. The link to the chart below is here if you would like to interact with it.

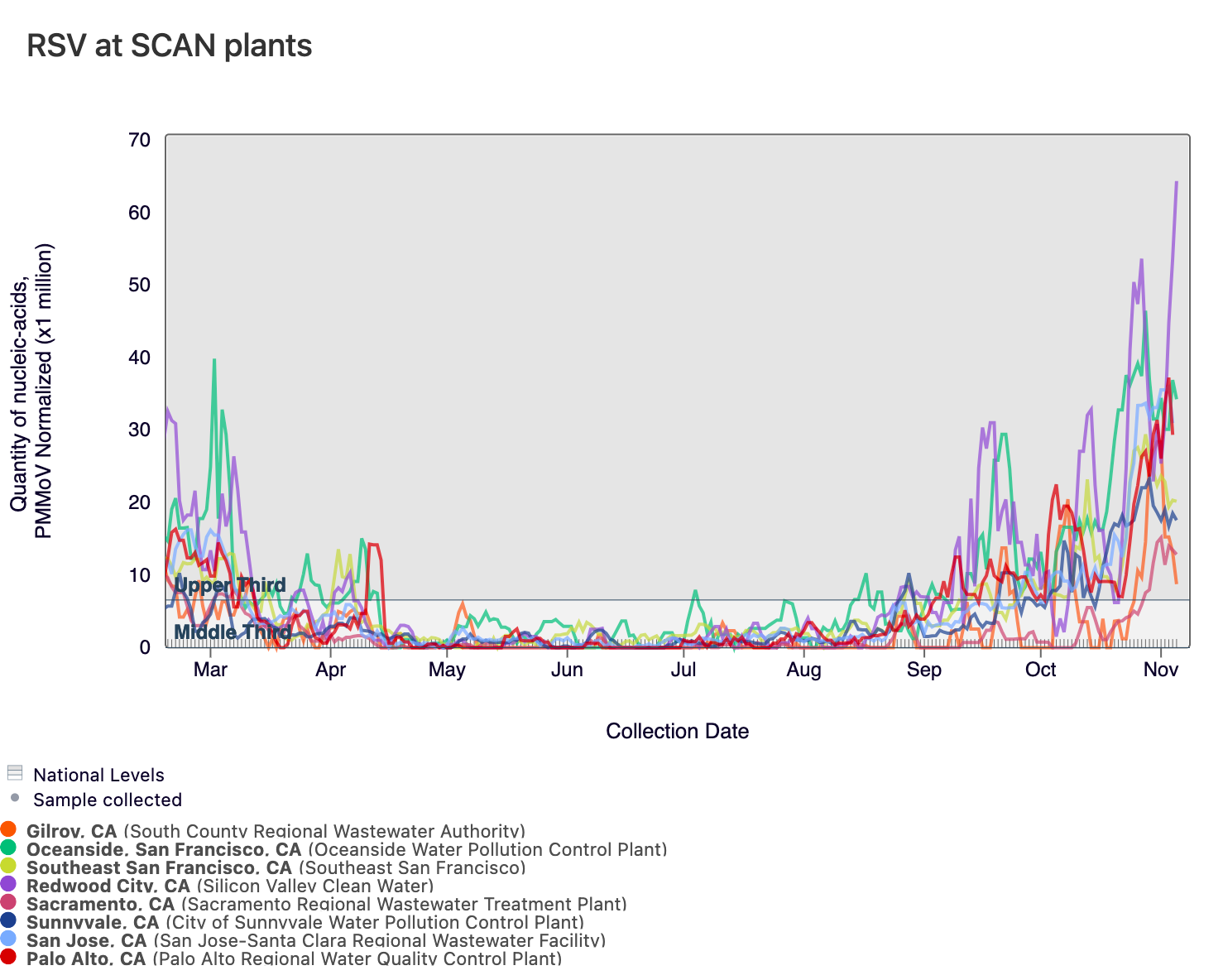

Below is a chart showing the National Levels benchmarks superimposed on the RSV data from the SCAN sites (you can access this chart here). ‌Currently, all SCAN sites have RSV concentrations in the upper third level.

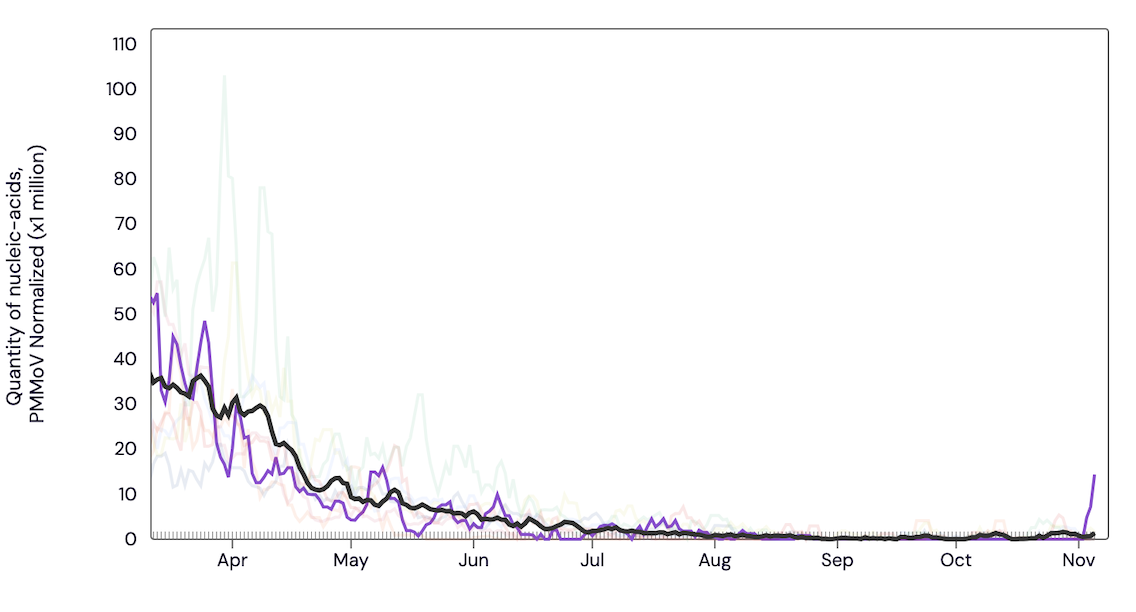

‌HMPV (Human metapneumovirus) RNA concentrations are low at most of plants in SCAN, except SVCW which has recently increased in concentration. In the chart below, the population weighted average line for all SCAN plants (black) is shown compared to the HMPV RNA concentrations at SVCW (purple) since April.

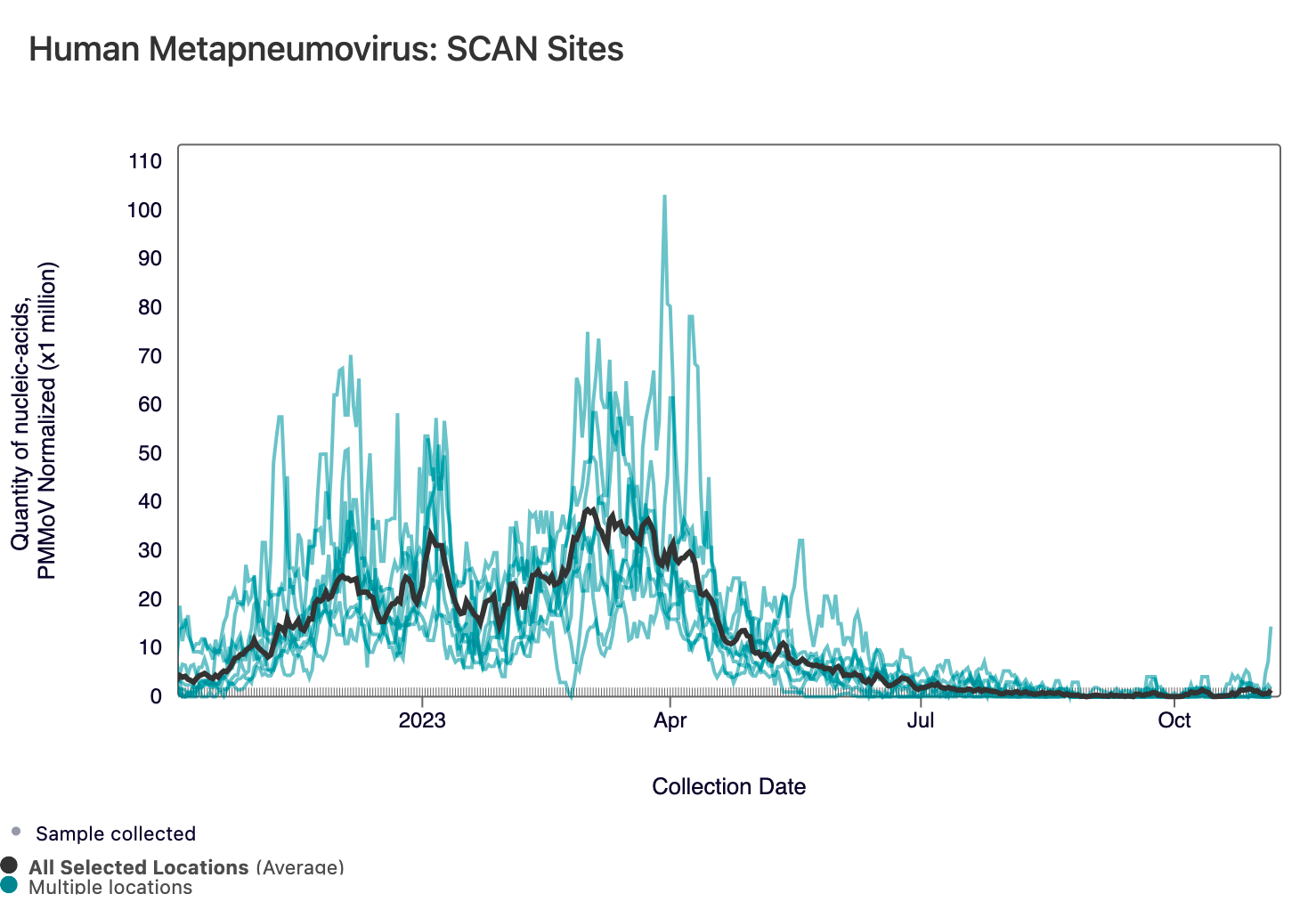

In the chart below, the population weighted average line across all the SCAN plants is shown in black over the past year (link here to this chart if you want to interact with it). ‌

Currently all SCAN sites are in the 'LOW' category for HMPV.

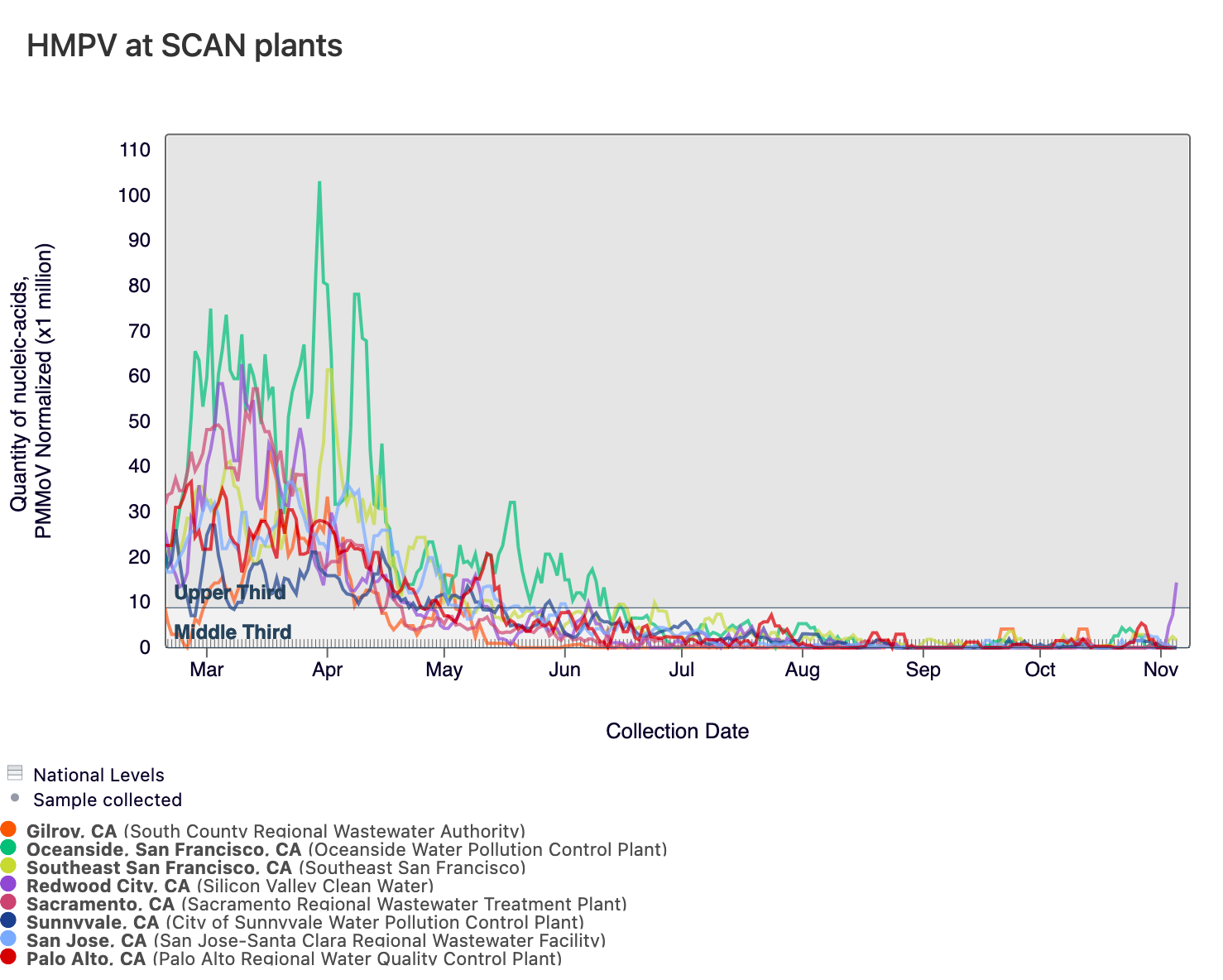

Below is a chart showing the National Levels benchmarks superimposed on the HMPV data from the SCAN sites. (You can access the chart here.) Currently, most SCAN sites have HMPV concentrations in the middle third level. SVCW has HMPV concentrations in the upper third level.

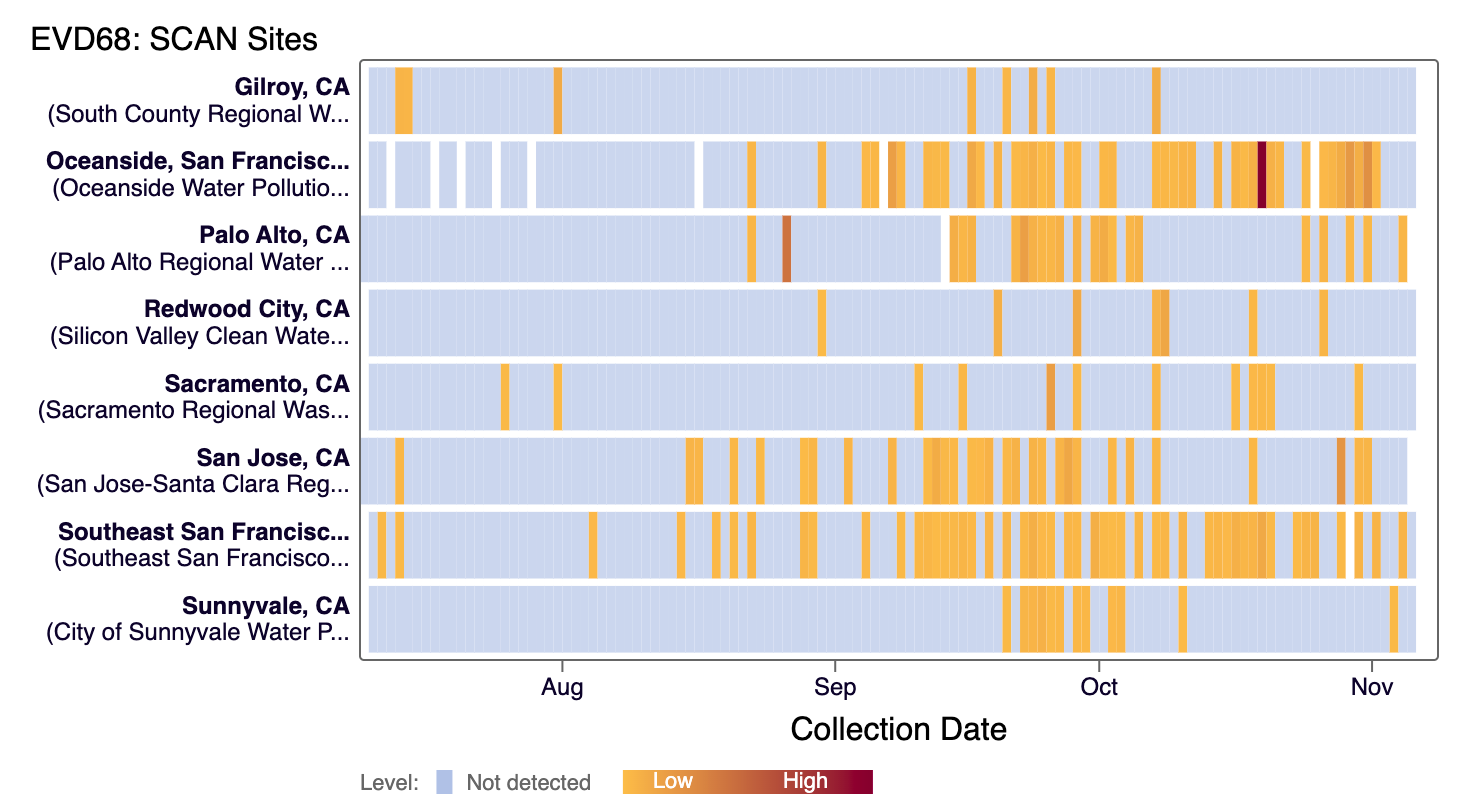

EV-D68 RNA was sporadically detected in samples collected in the last 21 days at most SCAN sites. However, at Oceanside SF and Southeast SF, EV-D68 was detected in most samples collected in the last 21 days. The heat map below shows all the SCAN sites as a row, and each date as a column since monitoring began in July. The color blue means the sample was non-detect for EV-D68 RNA and the colors get darker with higher concentrations. White indicates no sample was collected. You can access the chart here.‌ EV-D68 is believed to occur biennially, and we saw it last year, so perhaps it will not be common this year.

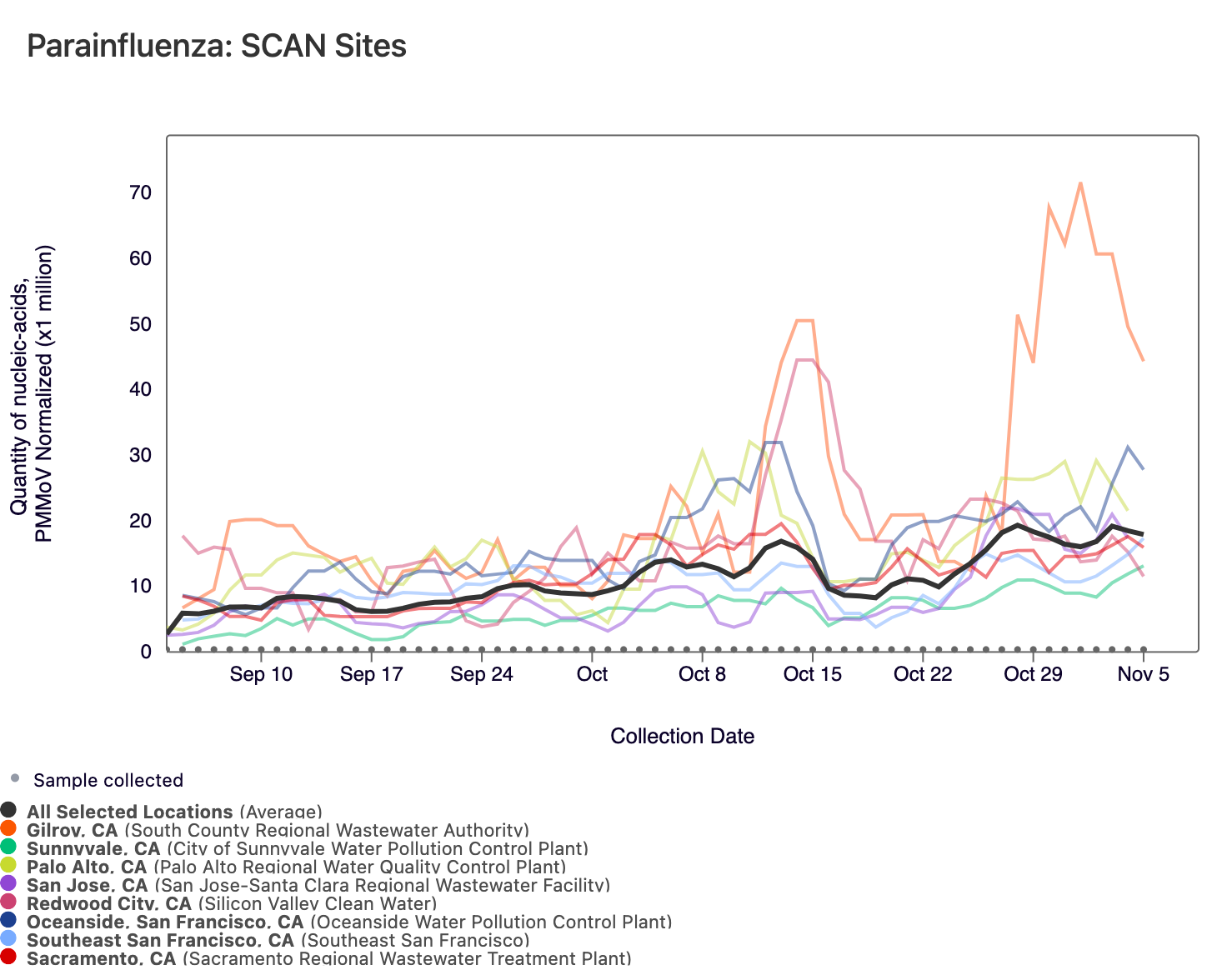

Parainfluenza RNA has been detected in most samples collected from SCAN sites. The population weighted average line is shown in black. You can access the chart here.‌

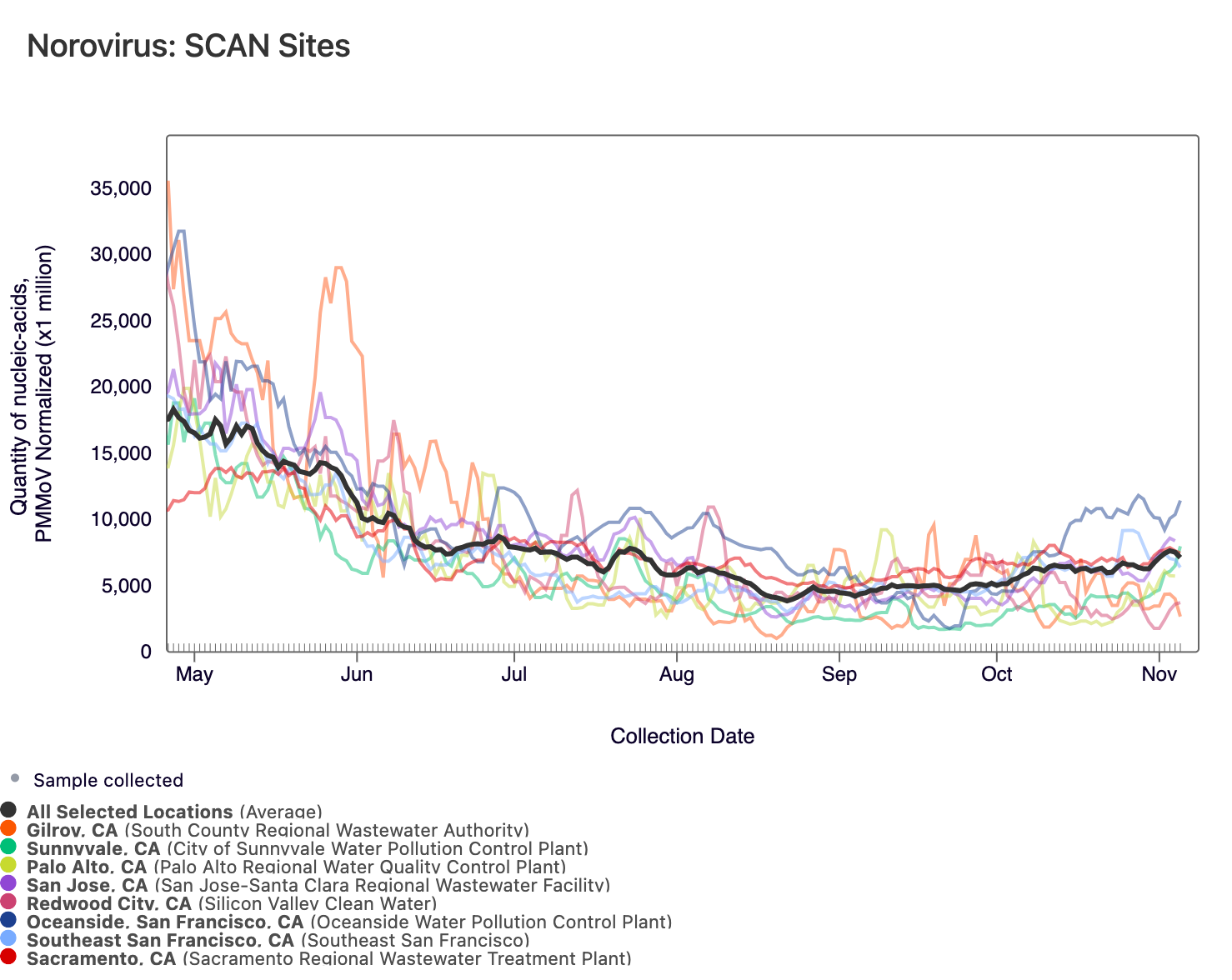

Norovirus GII RNA concentrations are commonly detected at all sites. In the chart below, the population weighted average line for all SCAN plants (black) is shown compared to the Norovirus GII RNA concentrations across SCAN sites since May.

Below are the current Norovirus wastewater categories for the SCAN sites:

SVCW, Gilroy, Southeast SF, and Sacramento are in the LOW Wastewater Category Oceanside SF, Sunnyvale, Palo Alto, and San Jose are in the Medium Wastewater Category

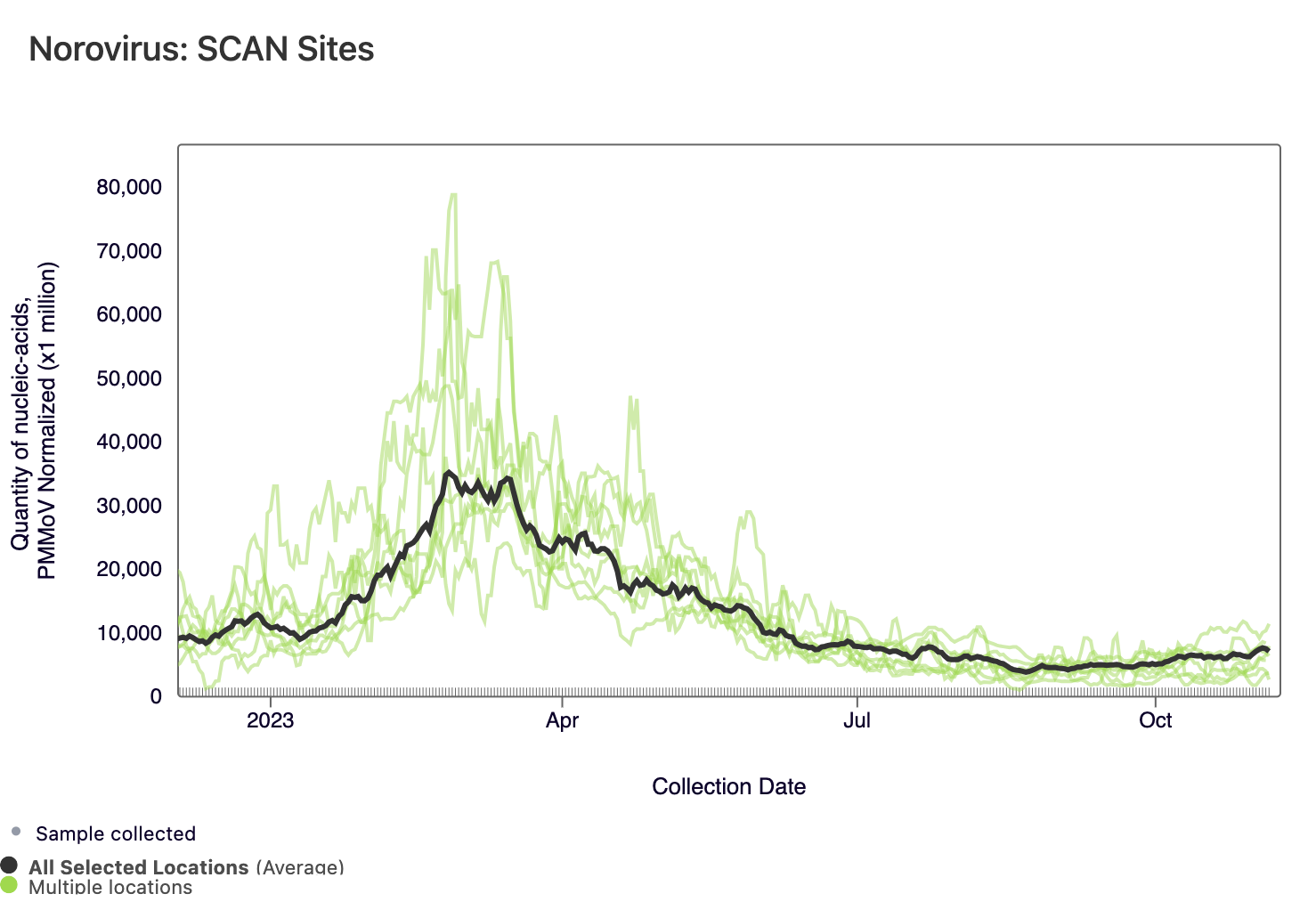

The plot below shows the Norovirus concentrations at the SCAN sites. The population weighted average line is shown in black. You can interact with the chart of all the plants at this link.

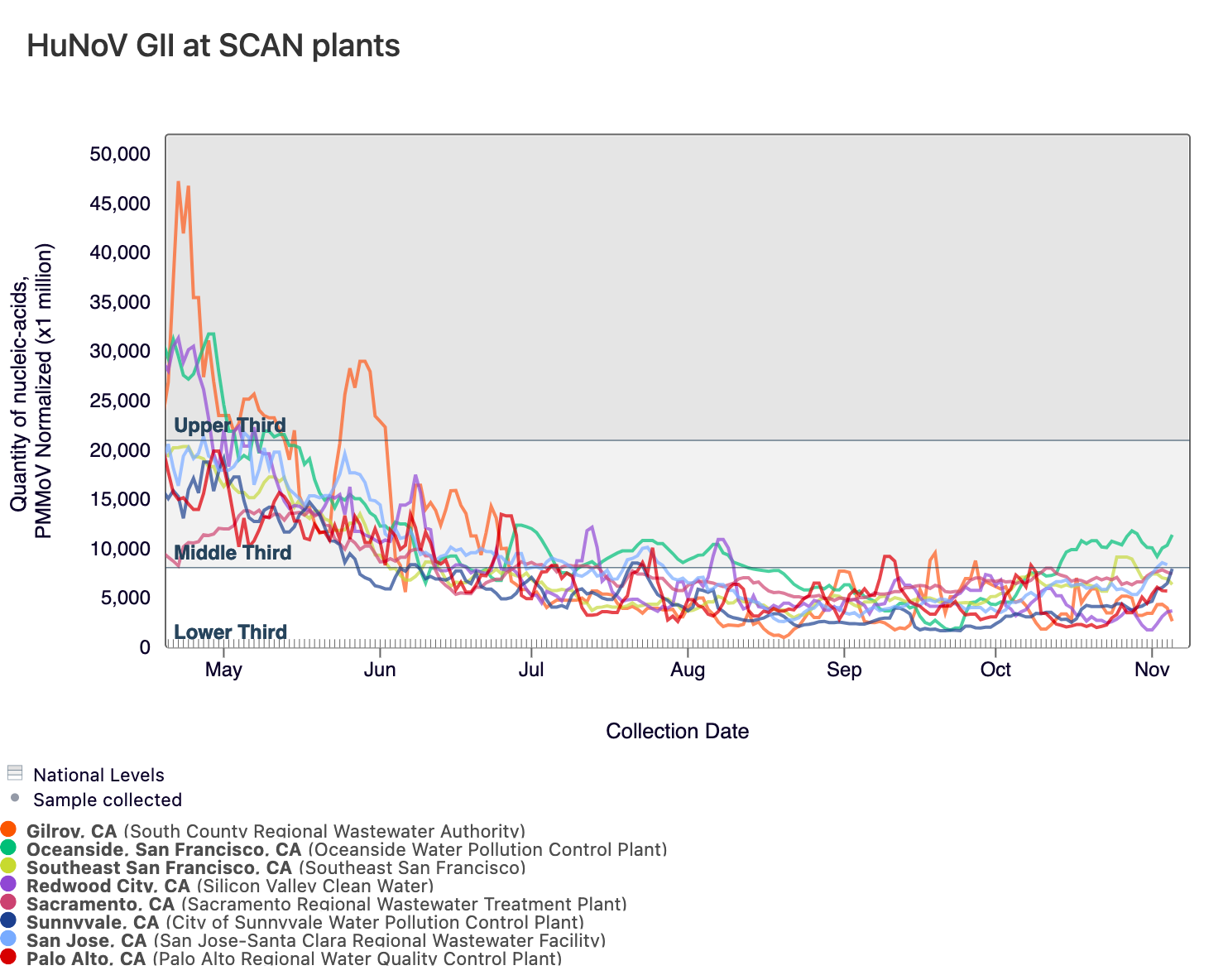

Below is a chart showing the National Levels benchmarks superimposed on the Norovirus concentrations from the SCAN sites.(You can access the chart here.) Currently most SCAN sites HuNoV GII concentrations in the lower third level except for Oceanside SF and San Jose which are in the middle third.

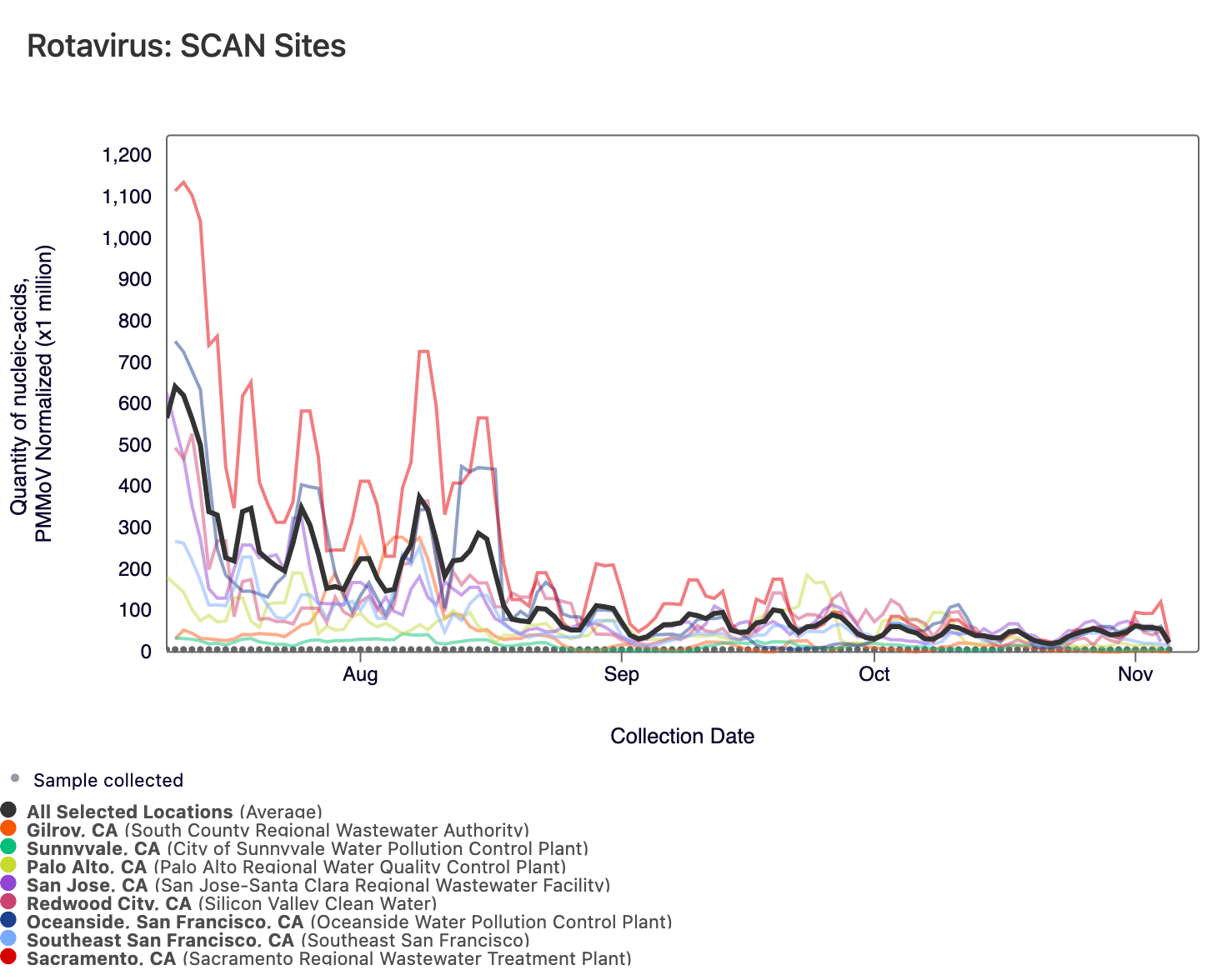

‌Rotavirus RNA concentrations are shown in the chart below; all the SCAN plants are shown together. The population weighted average line is shown in black. You can interact with the chart of all the plants here.‌

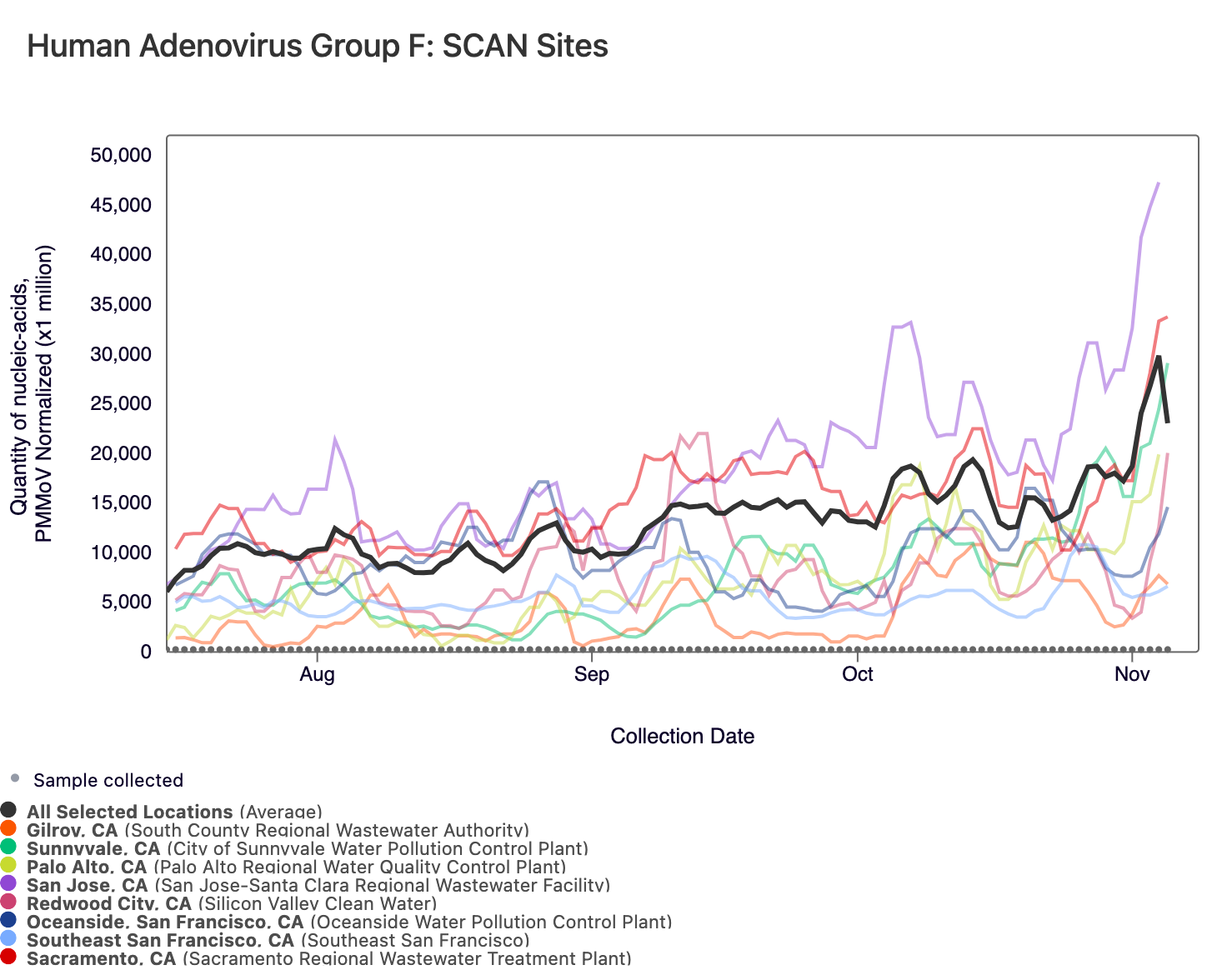

Human Adenovirus Group F DNA concentrations are shown in the chart below; all the SCAN plants are shown together. The population weighted average line is shown in black. You can interact with the chart of all the plants here.‌‌‌

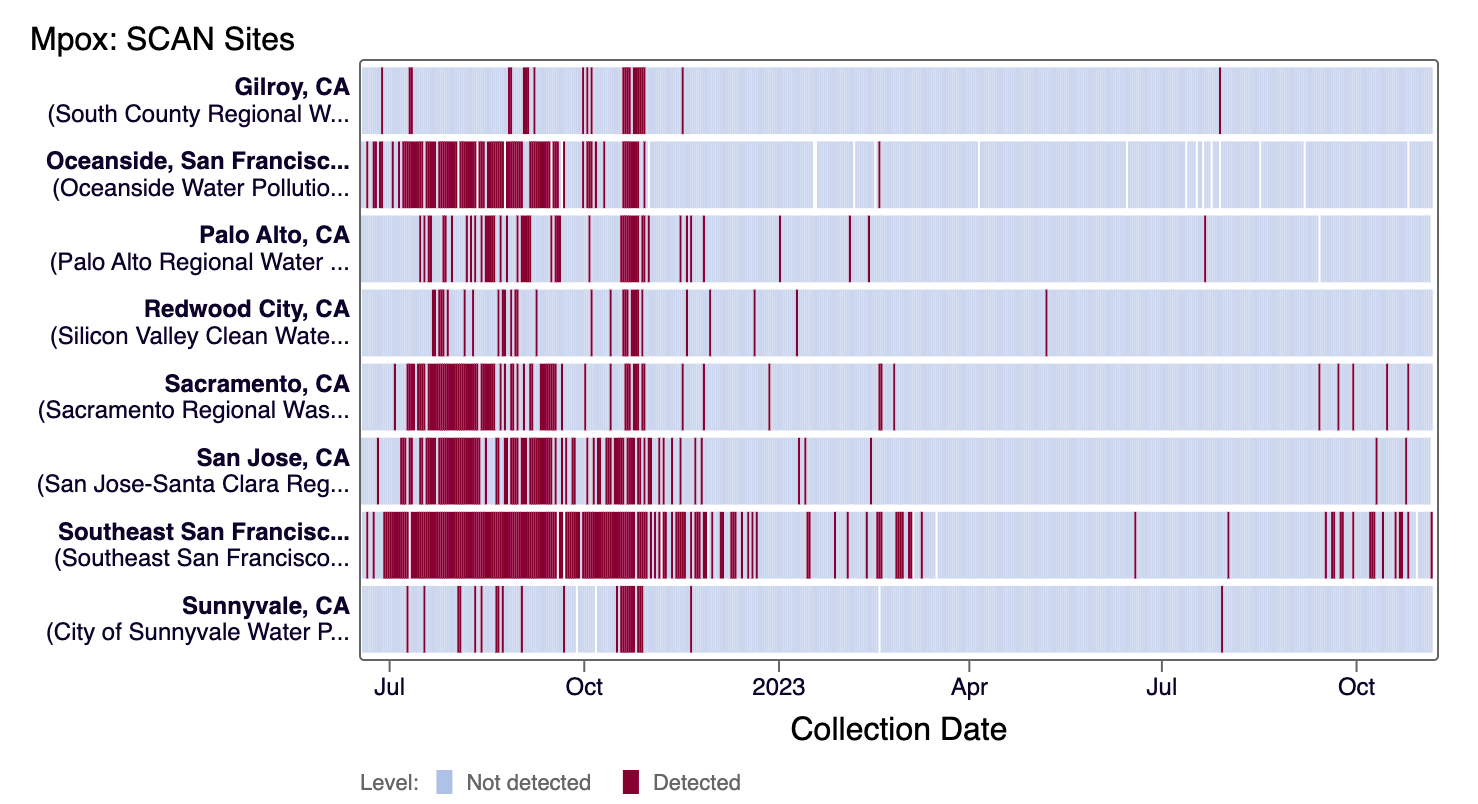

Mpox DNA was not detected in most samples collected in the last 21 days at most SCAN sites. However, at Southeast SF Mpox DNA was detected sporadically in the last 21 days. The heat map below shows all the SCAN sites as a row, and each date as a column since July 2022. The color blue means that MPXV DNA was not detected in the sample, and the dark purple color means it was detected. White indicates no sample was collected. The chart shows all the data we have collected. You can access the chart here.

Currently all SCAN sites are in the 'LOW' category for Mpox

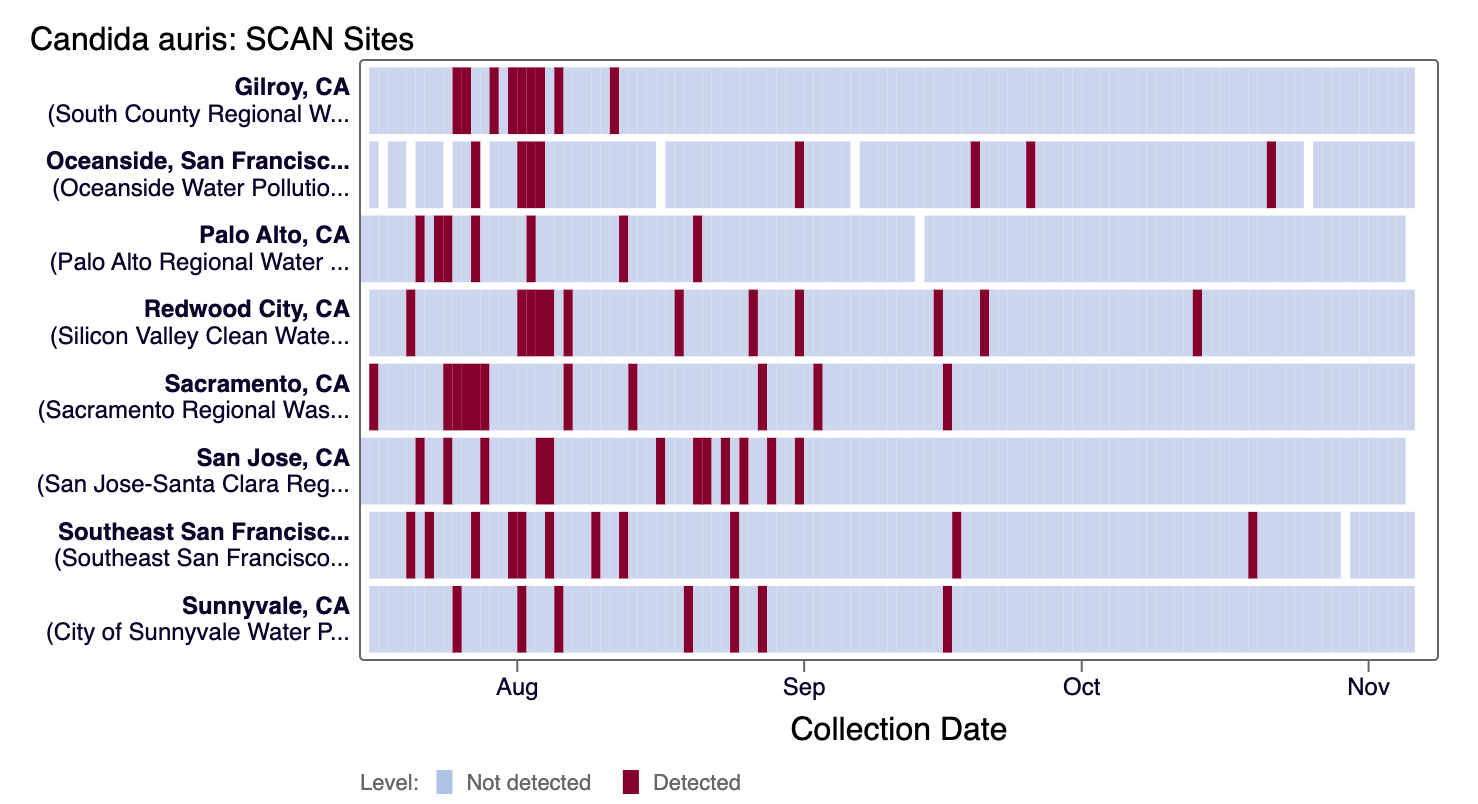

Candida auris DNA was not detected in most samples collected in the last 21 days at SCAN sites. The heat map below shows all the SCAN sites as a row, and each date as a column for all data collected since monitoring began in July. The color blue means that Candida auris DNA was not detected in the sample, and the dark purple color means it was detected. White indicates no sample was collected. You can access the chart here.‌

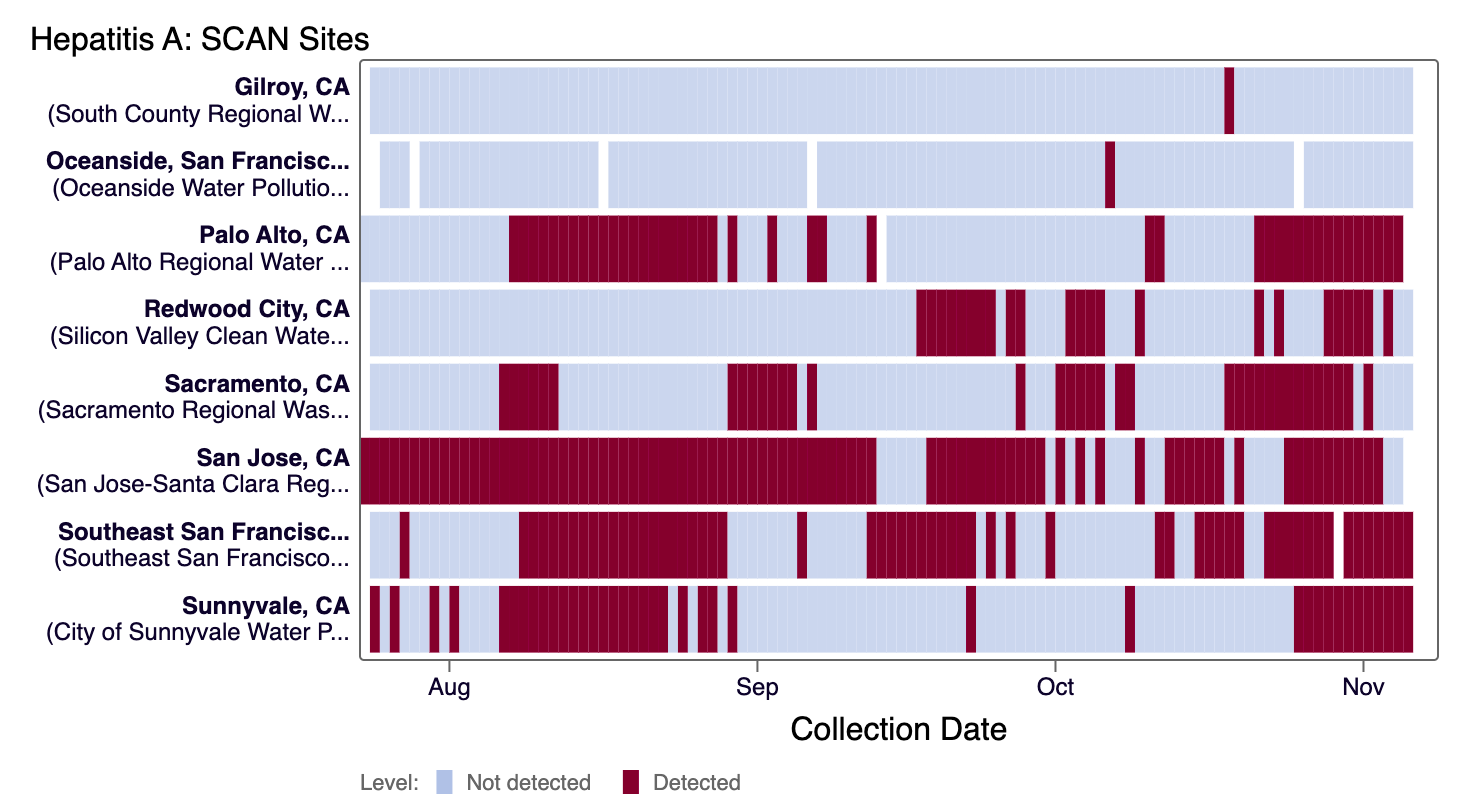

Hepatitis A RNA was detected in most samples from most SCAN plants and detected infrequently at Oceanside SF and Gilroy in the last 21 days. The heat map below shows all the SCAN sites as a row, and each date as a column for all data collected since monitoring began in July. The color blue means that Hepatitis A RNA was not detected in the sample, and the dark purple color means it was detected. White indicates no sample was collected. You can access the chart here.‌
