Bay Area SCAN weekly update 2/9/23

All samples picked up by the couriers as of 2/7/23 have been processed and their data are on the site: The data from the SCAN sites are also on the new site designed by Stamen If you notice any bugs on the new site or have any comments about it, please alert us.

We stopped measuring the SARS-CoV-2 S gene so we could run an assay for 5 uniquely adjacent SNPs in XBB*. The new primers and probe sequences are available at our site. The new assay is designed to detect both XBB and XBB1.5.


SARS-CoV-2 and Variants

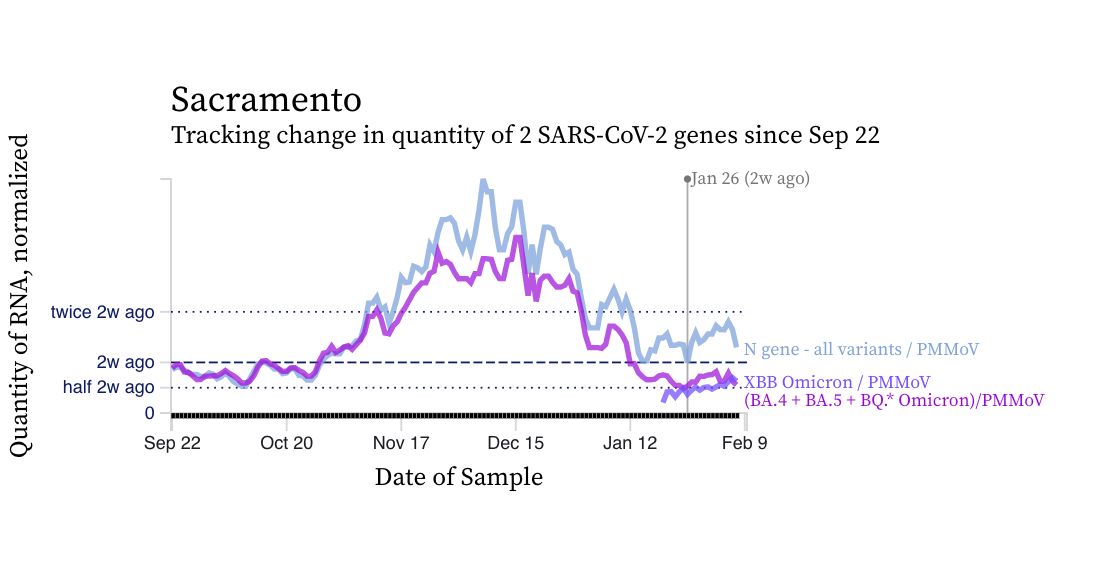

SARS-CoV-2 RNA concentrations are mostly flat over the last two weeks. Concentrations are still quite high, on the order to 100,000 copies/g dry weight of wastewater solids. Here is an example chart from Sacramento.

The Sacramento chart shows that the mutation in XBB* (shonw in violet) is trending upward in wastewater solids indicating increased input of XBB* from shedders in the sewersheds. At the same time, the concentration of the mutation present in the BQ* and BA.5 sublineage (shown in bright purple) continues to decrease relative to the N gene.

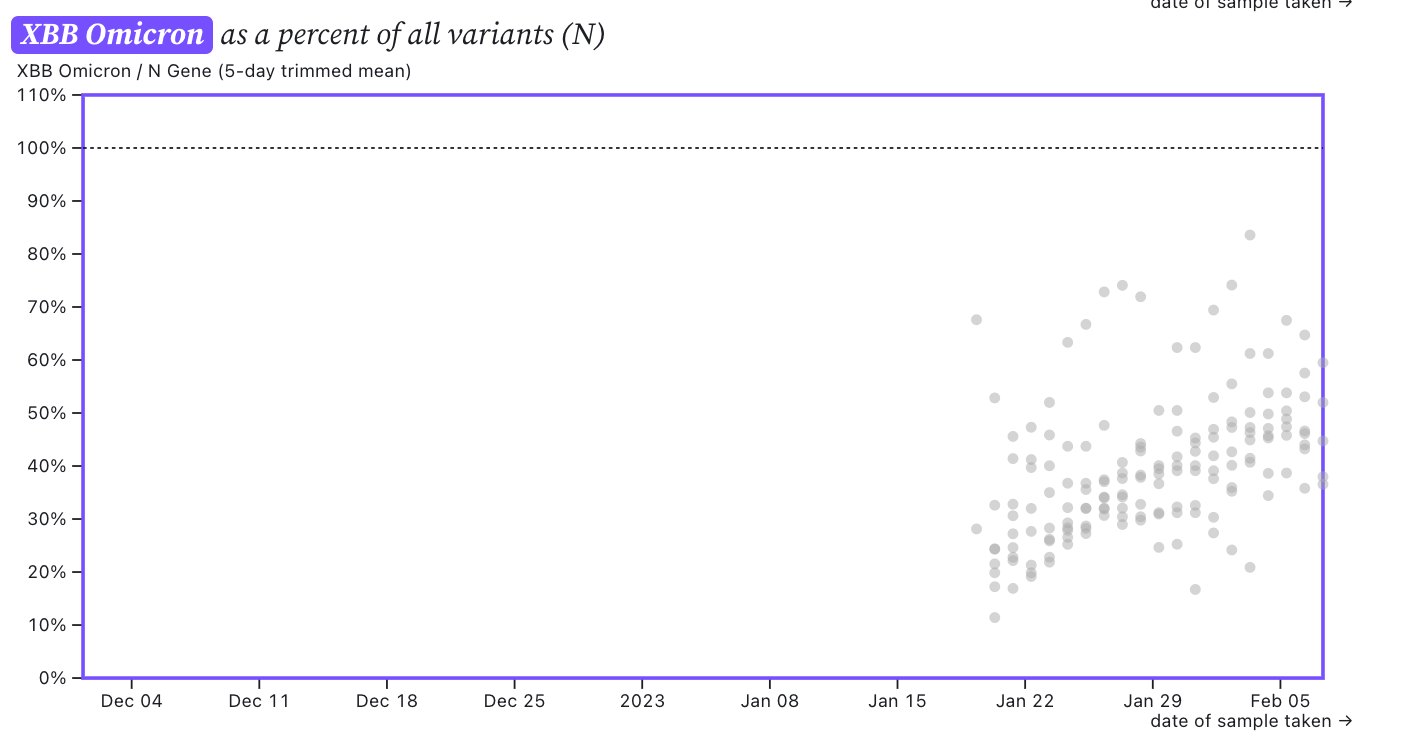

The ratio of the XBB* mutations/N across SCAN plants is shown in the chart below. As the ratio reaches 100%, it suggests that all the SARS-CoV-2 genomes in wastewater have the XBB* mutations. These data indicate that the regional average ratio XBB* mutations/N is ~50%, and there is an increasing trend. This suggests ~50% of infections across the communities are caused by XBB or XBB1.5 and the percentage is increasing.

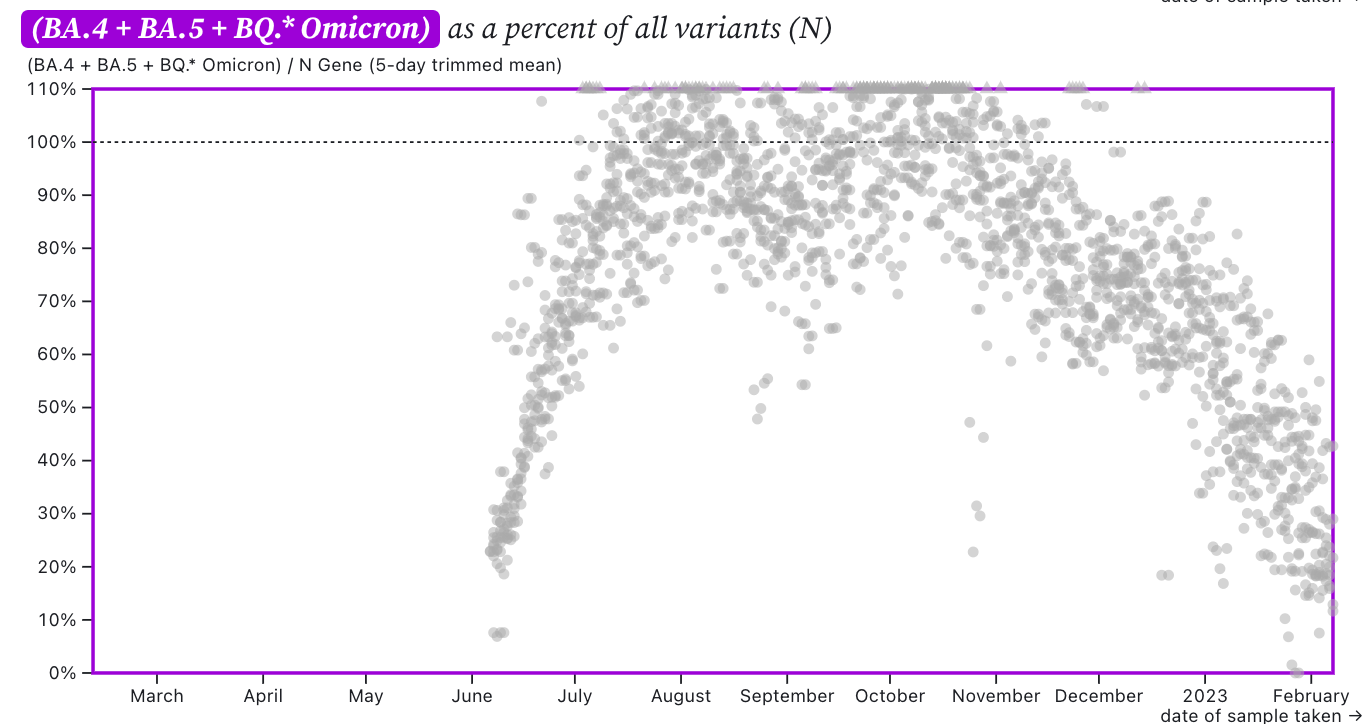

The chart below shows the ratio of the BA.5, BA.4, and BQ* mutation/N across SCAN plants. It can be read the same way as the above chart. The regional average ratio is about 30-40% and has a decreasing trend.

Other respiratory viruses

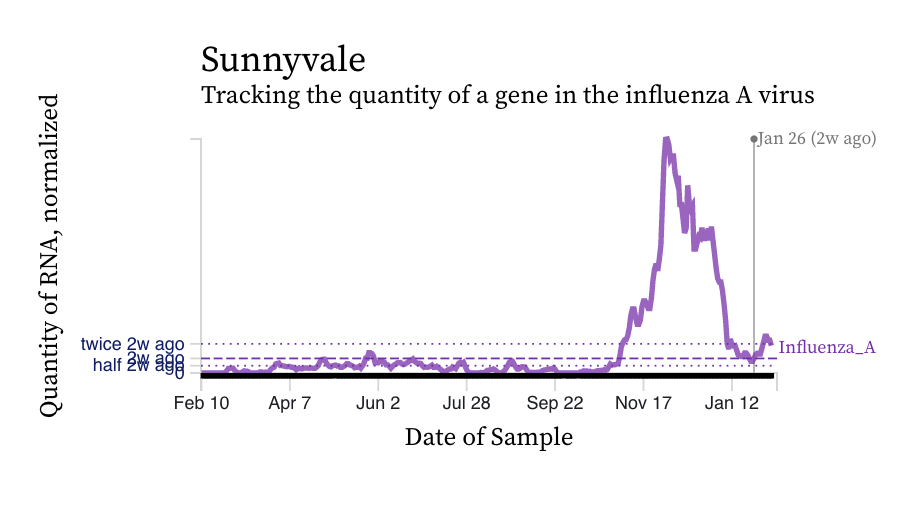

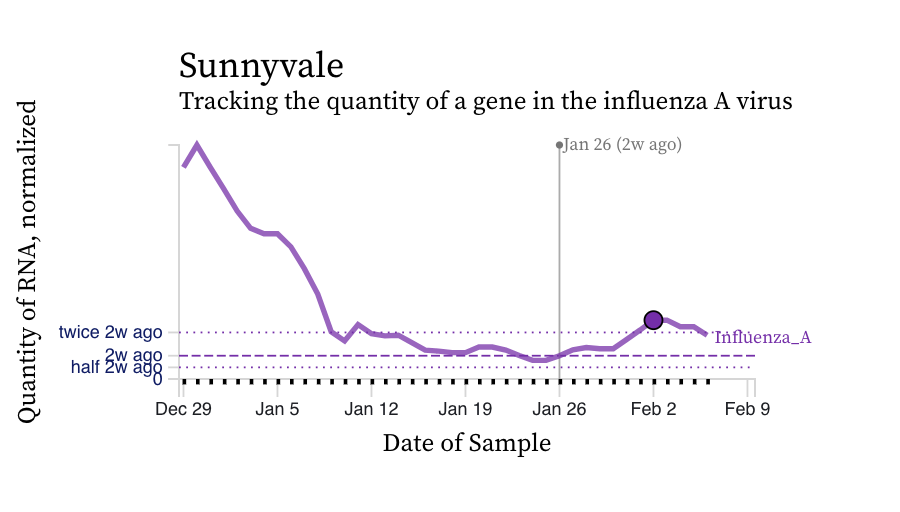

Influenza A (IAV) RNA concentrations have dropped precipitously across the plants. However, at Sunnyvale, concentrations are twice what they were two weeks ago, indicating some increased inputs to the wastewater system from shedders over the last two weeks. The approximately one year chart of influenza A concentrations at Sunnyvale is shown below, and then beneath it is a zoom in of four weeks of data where you can see the increases, but levels are still quite low, especially compared to the highest levels seen last fall/winter 2022. Concentrations are generally on the order of 1,000 copies per gram dry weight of wastewater solids.

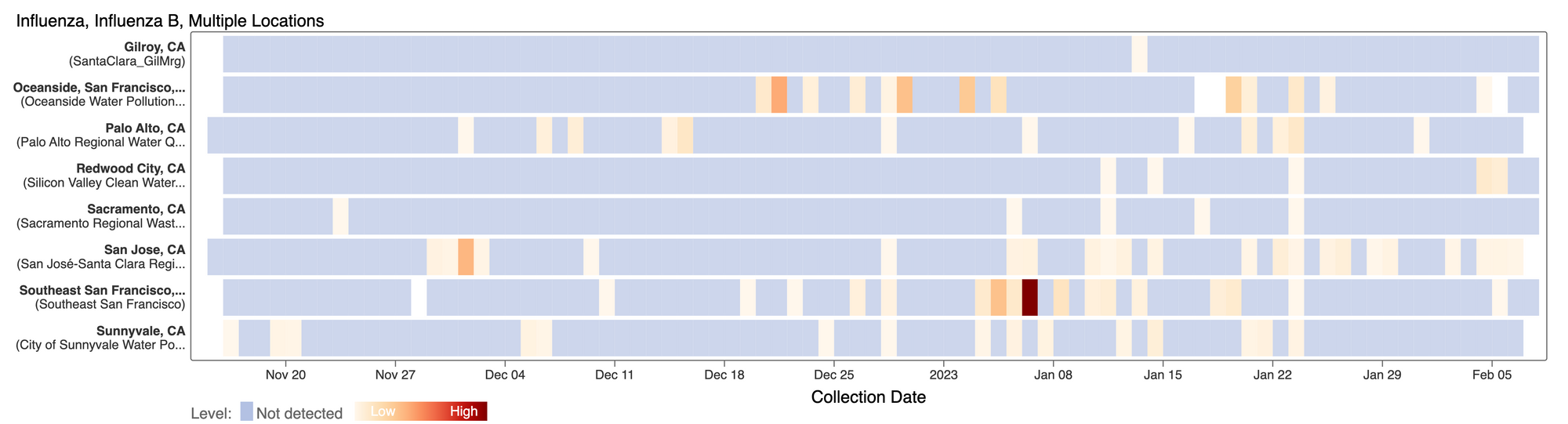

Influenza B (IBV) RNA concentrations continue to be sporadically detected at low concentrations at the SCAN plants. A heat map is shown below of the IBV concentrations at the SCAN plants. Each plant is represented by a row (y-axis), and dates are shown along the x-axis. Blue indicates a non-detect, and darker orange/red is proportional to concentration with the highest values being darkest. Detections over the month of January 2023 have been in greater proportion across the plants than the month of December 2022. Here is the link to the chart - the linked chart will update automatically as more data are added to the site.

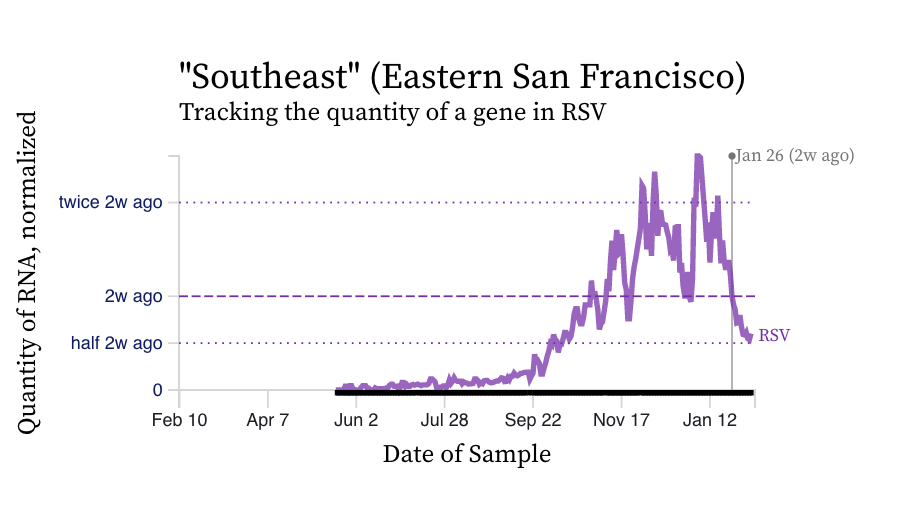

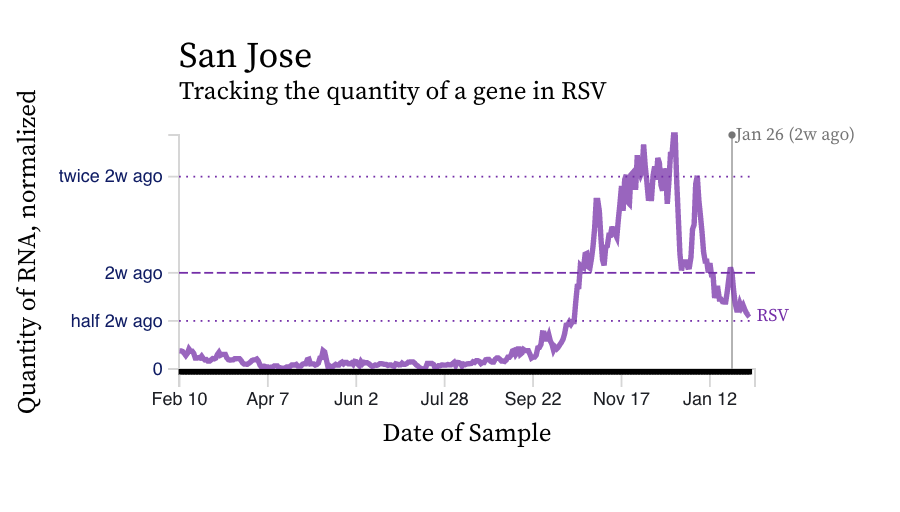

RSV RNA concentrations have decreased from their highest levels, concentration remain elevated at ~ 10,000 copies/g, ten times our lower detection limit. Most plants have an "open curve" meaning that although levels are decreasing, they have not bottomed out (like IAV appears to have). Example charts from Southeast and San Jose are below to illustrate this.

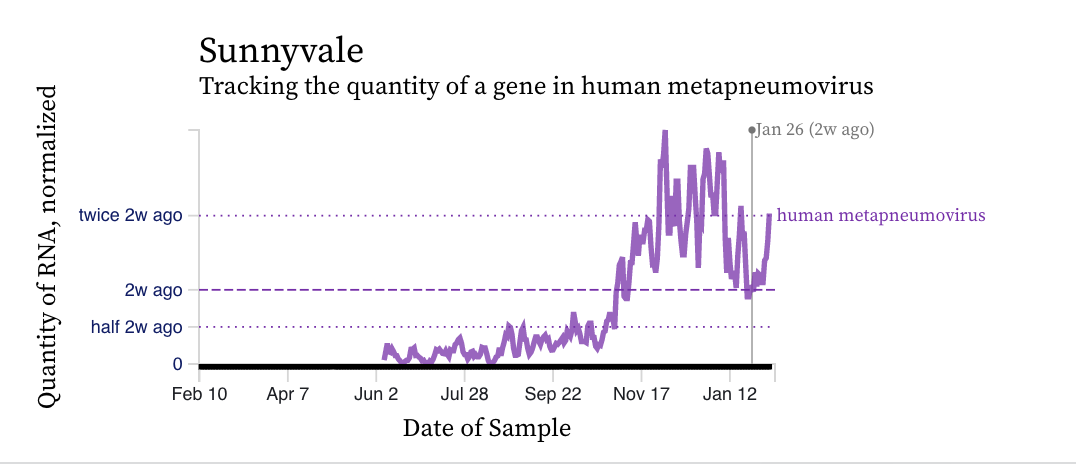

‌‌HMPV (human metapneumovirus) RNA concentration trends are more similar to RSV than IAV.  There is a diversity of trends, but all data suggest the virus is still circulating, and being shed into wastewater in the communities, albeit with fewer inputs into the plants now than a month ago. Below are charts showing data from just Sunnyvale and then all the SCAN plants together.

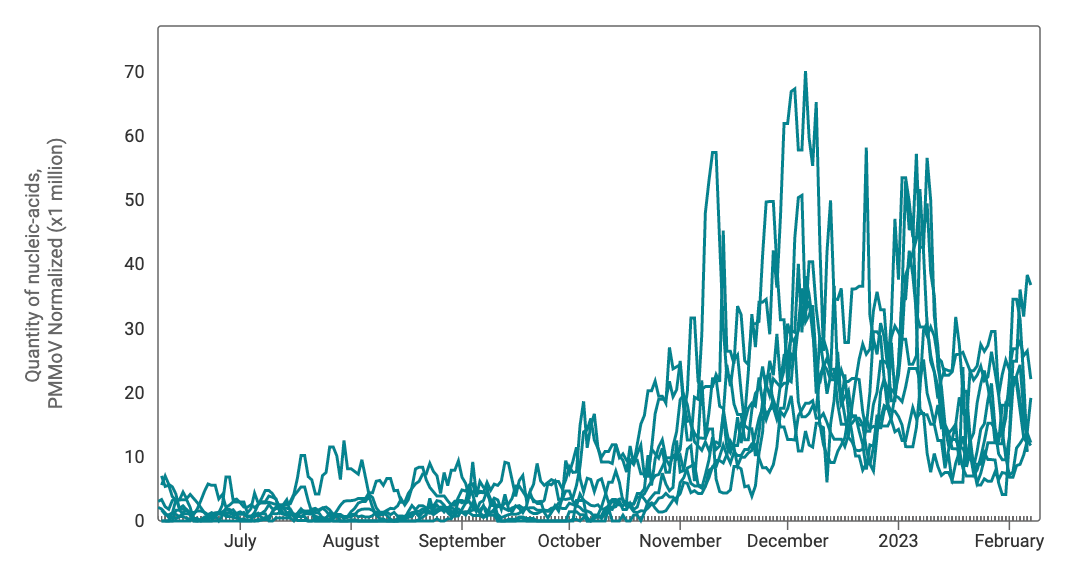

HMPV RNA /PMMoV at all SCAN plants generated on the site


Assay detects human norovirus GII

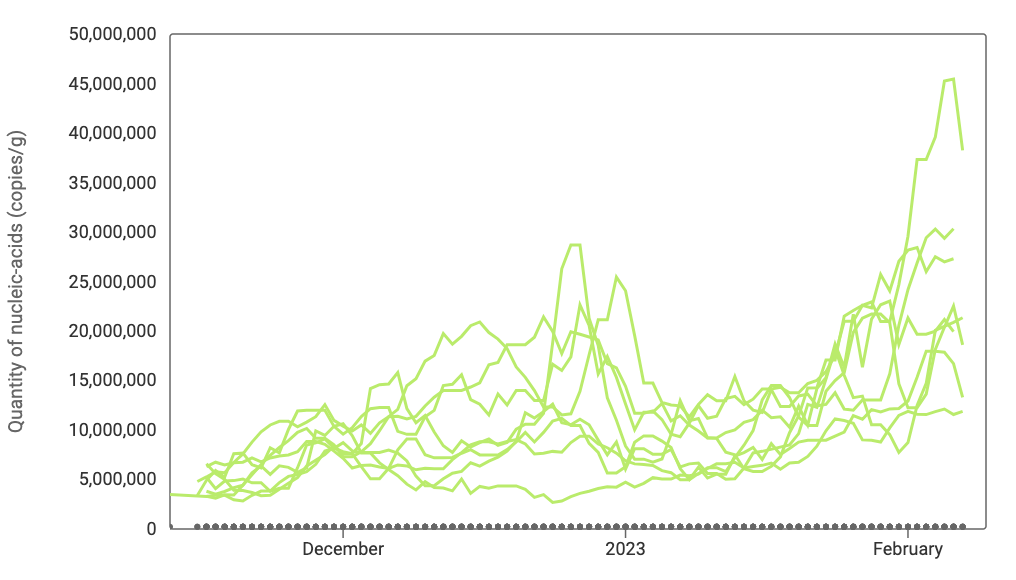

Norovirus GII RNA concentrations are high relative to concentrations of SARS-CoV-2. The median is 10^7 copies per gram dry weight (the highest we measure SARS-CoV-2 at is about 10^6 copies per gram).  Norovirus GII can be shed in feces of newly infected individuals at concentrations as high as 10^11 copies per gram stool, so the high concentrations we are observing are not unrealistic. We do not measure Norovirus GI, which can also be present in wastewater. Here is a chart how Norovirus GII across all the SCAN plants with all the data we have collected over the last ~12 weeks. The link to the chart is here if you want to have a look and play with it.

Concentration of Norovirus GII RNA per gram dry weight of settled solids

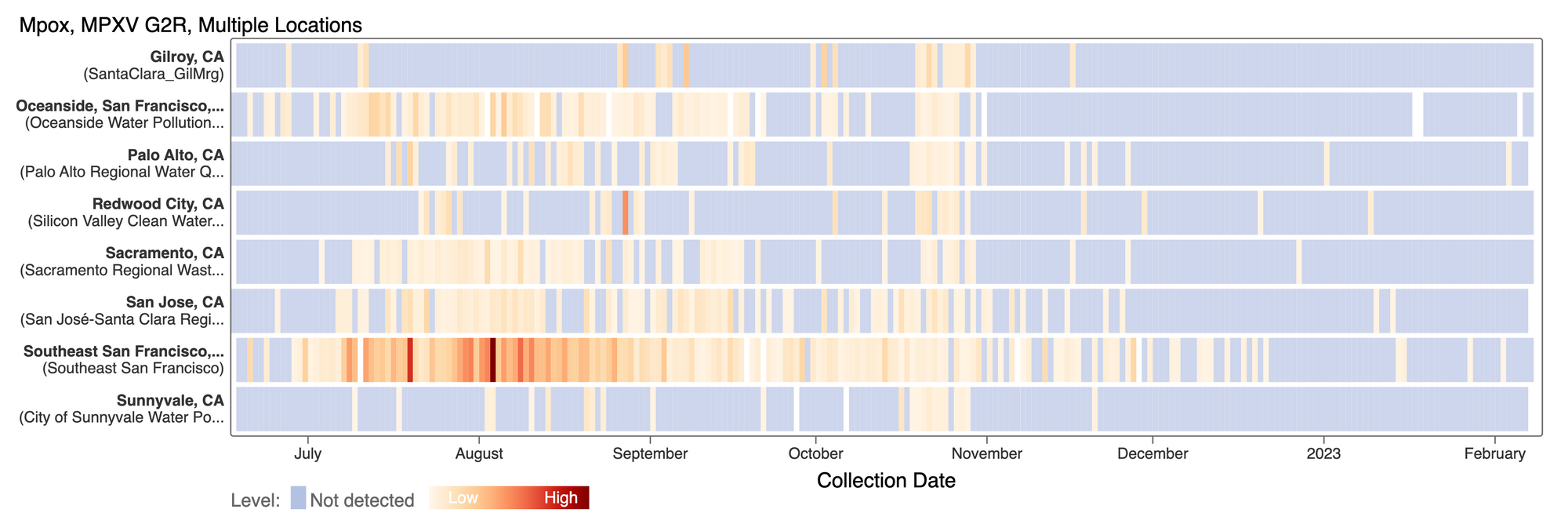

We've seen mostly non-detects in the past 2 weeks for MPXV DNA at most plants. This heat map shows all the SCAN sites as a row, and each date as a column. The color blue means the sample was non-detect for MPXV DNA and the colors get darker with higher concentrations. This chart highlights that we rarely have detections of MPXV DNA at these SCAN plants recently, but we can see how we had much more in the past. The state of CA just ended the public health emergency for MPOX this past week. You can access this plot here.
